UKE ®

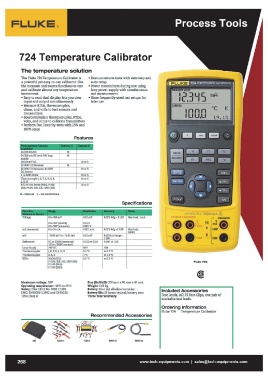

724 Temperature Calibrator

The temperature solution

The Fluke 724 Temperature Calibrator is • Execute remote tests with auto step and

a powerful yet easy-to-use calibrator. Use auto ramp
the measure and source functions to test • Power transmitters during test using
and calibrate almost any temperature
instrument. loop power supply with simultaneous
• Easy to read dual display lets you view rnA measurement
• Store frequently-used test setups for
input and output simultaneously later use

• Measure RTDs, thermocouples,
ohms, and volts to test sensors and
transmitters

• Source/simulate thermocouples, RTDs,
volts, and ohms to calibrate transmitters

• Perform fast linearity tests with 25% and
100% steps

Features

M= Measure 5 = Source/ Simulate

Specifications

&30V MAX AL TE H.II. LS

TC mA ~CCW.JV MEASURE ,

II
lOOP

PI 100. 200. 500. 1000 (385) Fluke 724
PI 100 (3916)
PI 100 (3926)

Maximum voltage: 30V Size (HxWxD): 200 mm x 96 mm x 47 mm Included Accessories
Operating temperature: -10· C to 55· C Weight: 0.65 kg
Safety: CSA C22.2 No. 1010.1:1992 Battery: Four AA alkaline batteries Test Leads, AC175 Test Clips, one pair of
EMC: EN50082-1:1992 and EN55022: Battery life: 25 hours typical; battery door stackable test leads.
Three Year Warranty
1994 Class B Ordering Information
Recommended Accessories
= Fluke 724 Temperature Calibrator

C25 TL220· 1 TL81A 8OPK· 25 SOPK· 3 "
