P. 344
UKE ®

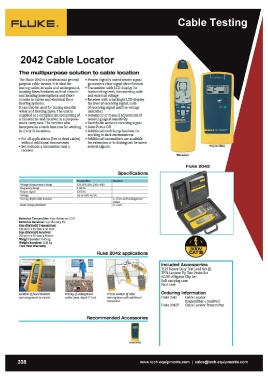

2042 Cable Locator
The multipurpose solution to cable location
The Fluke 2042 is a professional general • Proven digitally coded sender signal
purpose cable locator. It is ideal for guarantees clear signal identification
tracing cables in walls and underground,
locating fuseslbreakers on final circuits • Transmitter with LCD-display for
and locating interruptions and short- transmitting level, transmitting code
circuits in cables and electrical floor and external voltage
heating systems.
It can also be used for tracing metallic • Receiver with a backlight LCD-display
water and heating pipes.The unit is for level of receiving signal, code
supplied as a complete kit comprising of
a transmitter and receiver in a purpose- of receiving signal and live voltage
made carry case. The receiver also indication
incorporates a torch function for working • Automatic or manual adjustment of
in dimly lit locations. receiving signal sensitivity
• Switchable acoustic receiving signal
• For all applications Oive or dead cables) • Auto-Power-Off
without additional instruments
• Additional torch lamp function for
• Set includes a transmitter and a working in dark environments
receiver
• Additional transmitters are available
for extension or to distinguish between
several signals.
L... ~tIer Specifications
12V, 50V,120V, 230V, 400V
Voltage Measurement Range 0..60 Hz 0...2.5m walVunderground
Frequency Range 125 kHz cables
Output signal O...O.4m
Voltage Up to 400V AC/DC
lfacing depth cable location
Main voltage detection
Batteries Transmitter: 6 pc Batteries l .5V Fluke 2042 applications
Batteries Receiver: 1 pc Battery 9V
Size (HxWxD) Transmitter: Included Accessories
190mmx 85mmx 50 mm
Size (HxWxD) Receiver: TL27 Heavy DUty Test Lead Set (2)
250 mm x 65 mm x 45mm TP74 Lantern Tip Test Probe Set
Weight Locator: 0.45 kg AC285 Alligator Clip Set
Weight Receiver: 0.36 kg Soft carrying case
Hard case
.Two Year Warranty
" Ordering Information
Location offuseslbreakers Tracing of underground Precise location of cable Fluke 2042 Cable Locator
and assignment to circuits cables (max. depth 2.5 m) interruptions with additional (transmitter + receiver)
transmitter
Fluke 2042T Cable Locator Transmitter
Recommended Accessories
I
Fluke 204Zf
338 www.tech-equipments.comlsales@tech-equipments.com
