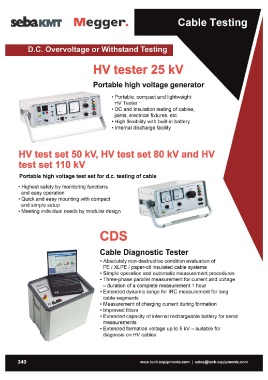

D.C. Overvoltage or Withstand Testing

HV tester 25 kV

Portable high voltage generator

• Portable, compact and lightweight
HV Tester

• DC and insulation testing of cables,
joints, electrical fixtures , etc.

• High flexibility with built-in battery
• Internal discharge facility

HV test set 50 kV, HV test set 80 kV and HV

test set 110 kV

Portable high voltage test set for d.c. testing of cable

• Highest safety by monitoring functions
and easy operation

• Quick and easy mounting with compact
and simple setup

• Meeting individual needs by modular design

CDS

Cable Diagnostic Tester

• Absolutely non-destructive condition evaluation of
PE / XLPE / paper-oil insulated cable systems

• Simple operation and automatic measurement procedures
• Three-phase parallel measurement for current and voltage

- duration of a complete measurement 1 hour
• Extended dynamic range for IRC measurement for long

cable segments
• Measurement of charging current during formation
• Improved filters
• Extended capacity of internal rechargeable battery for serial

measurements
• Extended formation voltage up to 5 kV - suitable for

diagnosis on HV cables
