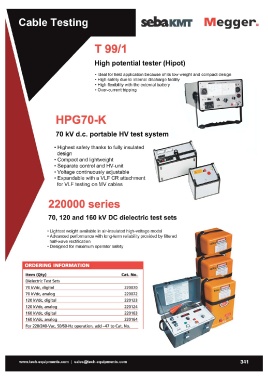

Page 347 - techequipmentscatalogue2016

sehaKMT M eggerm

T 99/1

High potential tester (Hipot)

• Ideal for field application because of its low weight and compact design
• High safety due to internal discharge facility
• High flexibility with the external battery
• Over-current tripping

HPG70·K

70 kV d.c. portable HV test system

• Highest safety thanks to fully insulated
design

• Compact and lightweight
• Separate control and HV-unit
• Voltage continuously adjustable
• Expandable with a VLF CR attachment

for VLF testing on MV cables

220000 series

70, 120 and 160 kV DC dielectric test sets

• Lightest weight available in air-insulated high-voltage model
• Advanced performance with long-term reliability provided by filtered

half-wave rectification
• Designed for maximum operator safety

ORDERING INFORMATION

Item (Qtr ) Cat. No.

Dielectric Test Sets

70 kVdc, digital 220070

70 kVdc, analog 220072

120 kVdc, dig ital 220123

120 kVdc, analog 220124

160 kVdc, dig ital 220163

160 kVdc, analog 220164

For 220/240-Vac, SO/60-Hz operation, add -47 to Cat. No.

www.tech-equipments.comlsales@tech-equipments.com 341
