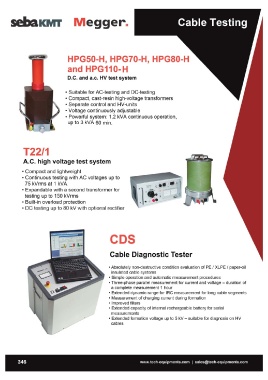

Page 352 - techequipmentscatalogue2016

M eggerm

HPG50-H, HPG70-H, HPG80-H
and HPG110-H

D.C. and a.c. HV test system

• Suitable for AC-testing and DC-testing
• Compact, cast-resin high-voltage transformers
• Separate control and HV-units
• Voltage continuously adjustable
• Powerful system: 1,2 kVA continuous operation,
up to 3 kVA 60 min.

T22/1 ·...:1: :; .. •• ,.• 'l'

A.C. high voltage test system ~'.'-6' .~' ,:n',",._~_~.- '

• Compact and lightweight ."
• Continuous testing with AC voltages up to

75 kVrms at 1 kVA
• Expandable with a second transformer for

testing up to 150 kVrms
• Built-in overload protection
• DC testing up to 80 kV with optional rectifier

CDS

Cable Diagnostic Tester

• Absolutely non-destructive condition evaluation of PE / XLPE / paper-oil
insulated cable systems

• Simple operation and automatic measurement procedures
• Three-phase parallel measurement for current and voltage - duration of

a complete measurement 1 hour
• Extended dynamic range for IRe measurement for long cable segments
• Measurement of charging current during formation
• Improved filters
• Extended capacity of internal rechargeable battery for serial

measurements
• Extended formation voltage up to 5 kV - suitable for diagnosis on HV

cables
