M eggerm

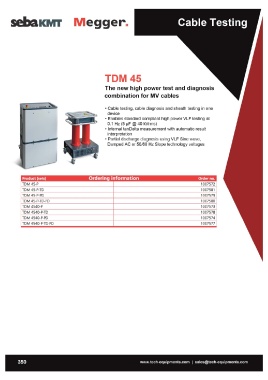

TDM45

The new high power test and diagnosis
combination for MV cables

• Cable testing , cable diagnosis and sheath testing in one
device

• Enables standard compliant high power VLF testing at
0.1 Hz (5 IJF @ 40 kVrms)

• Internal tan Delta measurement with automatic result
interpretation

• Partial discharge diagnosis using VLF Sine wave ,
Damped AC or 50/60 Hz Slope technology voltages

Product (sets) Ordering information Order no.
TDM 45-P 1007572
TDM 45-P-TD 1007581
TDM 45-P-PD 1007579
TDM 45-P-TD-PD 1007580
TDM 4540-P 1007573
TDM 4540-P-TD 1007578
TDM 4540-P-PD 1007574
TDM 4540-P-TD-PD 1007577
