P. 357
sehaKMT M eggerm

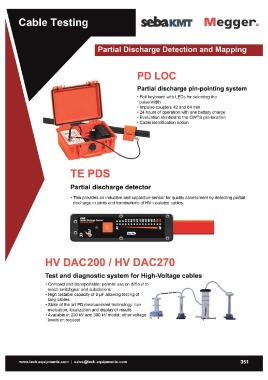

Partial Discharge Detection and Mapping
PDLOC
Partial discharge pin-pointing system
• Foil keyboard with LEDs for selecting the
pulse width
• Impulse couplers 42 and 64 mm
·24 hours of operation with one battery charge
• Evaluation identical to the OWTS pre-location
• Cable identification option
TE PDS
Partial discharge detector
• This provides an inductive and capacitive sensor for quality assessment by detecting partial
discharge in joints and terminations of HV insulated cables.
HV DAC200 I HV DAC270
Test and diagnostic system for High-Voltage cables
• Compact and transportable; permits use on difficult to
reach switchgear and substations
• High testable capacity of 8 IJF allowing testing of
long cables
• State of the art PD measurement technology: live
evaluation, localization and display of results
• Available in 200 kV and 300 kV model; other voltage
levels on request
www.tech-equipments.comlsales@tech-equipments.com 351
