sehaKMT M eggerm

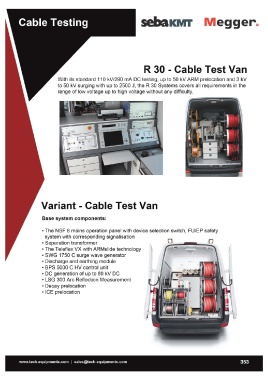

R 30 - Cable Test Van
With its standard 110 kV/290 mA DC testing , up to 50 kV ARM prelocation and 3 kV
to 50 kV surging with up to 2500 J, the R 30 Systems covers all requirements in the
range of low voltage up to high voltage without any difficulty.
Variant - Cable Test Van
Base system components:
• The NSF 8 mains operation panel with device selection switch , FU/EP safety
system with corresponding signalisation o o
• Separation transformer
• The Teleflex VX with ARMslide technology
• SWG 1750 C surge wave generator
• Discharge and earthing module
• BPS 5000 C HV control unit
• DC generation of up to 80 kV DC
• LSG 300 Arc Reflection Measurement
• Decay prelocation
• ICE prelocation
I
www.tech-equipments.comlsales@tech-equipments.com 353
