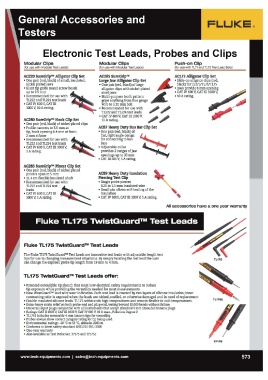

P. 579
FL.UKE ®
Electronic Test Leads, Probes and Clips
Modular Clips Modular Clips Push-on Clip
(for use with M odular Test Leads) (for use w ith Modular Test Leads) (for use w ith TL71 and TL75 Test Lead Sets)
AC220 SureGripTM Alligator Clip Set AC285 SureGripTM AC175 Alligator Clip Set
o One pair (red, black) of small, insulated, Large Jaw Alligator Clip Set ~ 0 Slide-on alligator clips (red,
nickel plated jaws o One pair (red, black) oflarge black) forTL175/TL71/TL75
o Blunt tip grabs round screw heads
alligator clips with nickel-plated 0 Jaws provide 8 mm opening
up to 9.5 mm
o Recommended for use with steel jaws ~ 0 CAT IV 600 V, CAT III 1000 V,
TL222 and TL224 test leads o Multi-purpose tooth pattern 0 10 A rating.
o CAT IV 600 V, CAT III
grips anything from fine gauge
1000 V, 10 A rating.
wire to a 20 mm bolt
AC280 SureGripTM Hook Clip Set
o One pair (red, black) of nickel plated clips o Recommended for use with
o Profile narrows to 5.6 mm at
TL222 and TL224 test leads
tip, hook opening 6.4 mm at front,
2 mmatbase o CAT IV 600 V, CAT III 1000 V,
o Recommended for use with
TL222 and TL224 test leads lOA rating.
o CAT IV 600 V, CAT III 1000V,
3 A rating. AC87 Heavy Duty Bus Bar Clip Set
o One pair (red, black) of
AC283 SureGripTM Pincer Clip Set
o One pair (red, black) of nickel plated flat, right angle design
for connecting to bus
pincers open to 5 mm bars
o 11.4 cm flexible insulated shaft o Adjustable collar
o Recommended for use with provides 2 ranges of jaw
TL222 and TL224 test openings up to 30 mm
leads o CAT III 600 V, 5 A rating.
o CAT IV 600 V, CAT III
1000 V, 1 A rating. AC89 Heavy Duty Insulation
Piercing Test Clip
o Single probe pierces
0.25 to 1.5 mm insulated wire
• Small pin allows self-healing of the
insulation
o CAT IV 6OOV, CAT III 1000 V, 5 A rating.
All accessories have a one year warranty
Fluke TL175 TWistGuard™ Test Leads
Fluke TL175 TwistGuard™ Test Leads TL1 7 5
TP175
The Fluke Tl1751\vistGuard™ Test Leads are innovative test leads with adjustable length test
tips for use in changing measurement situations. By simply twisting the test lead the user 573
can change the exposed probe tip length from 19 mm to 4 mm.
TL175 TwistGuard™ Test Leads offer:
o Patented extendable tip sheath that meet new electrical safety requirements to reduce
tip exposure while providing the versatility needed for most measurements
o New WearGuard™ lead wire wear indication. Each test lead is covered by two layers of silicone insulation; inner
contrasting color is exposed when the leads are nicked, scuffed, or otherwise damaged and in need of replacement
o Double insulated silicone leads.TL175 withstands high temperatures and remain flexible in cold temperatures.
o Extra-heavy strain relief on both probe-end and plug-end, testing beyond 30,000 bends without failure.
• Universal input plugs compatible with all instruments that accept standard 4 mm shrouded banana plugs
o Ratings: CAT Ii 1000 Y, CAT III 1000 Y, CAT IV 600 Y, 10 A max., Pollution Degree 2
o TL175E includes removable 4 mm lantern tips for versatility
o Probes always show correct category rating for tip being used
o Environmental ratings: -20 °C to 55 °C, altitude: 2000 m
o Conforms to latest safety standard EN61010-031: 2008
o One-year warranty
o Also available as Test Probe Set, TP175 and TP175E
