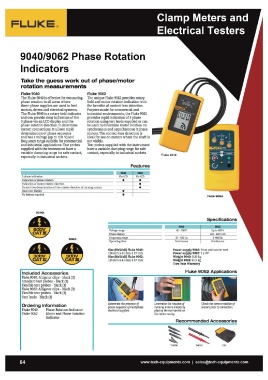

9040/9062 Phase Rotation
Indicators
Take the guess work out of phase/motor
rotation measurements
Fluke 9040 Fluke 9062
The Fluke 9040 is effective for measuring
phase rotation in all areas where The unique Fluke 9062 provides rotary
three-phase supplies are used to feed field and motor rotation indication with
the benefits of contact-less detection.
motors, drives and electrical systems.
The Fluke 9040 is a rotary field indicator Purpose made for commercial and
and can provide clear indication of the industrial environments, the Fluke 9062
3 phase via an LCD display and the provides rapid indication of 3 phase
phase rotation direction to determine rotation using test leads supplied or can
correct connections. It allows rapid be used to determine motor rotation on
synchronous and asynchronous 3 phase
determination of phase sequence motors.The contact-less detection is
and has a voltage (up to 700 V) and ideal for use on motors where the shaft is
frequency range suitable for commercial not visible.
and industrial applications.Test probes Test probes supplied with the instrument
supplied with the instrument have a have a variable clamping range for safe
variable clamping range for safe contact, contact, especially in industrial sockets.
especially in industrial sockets.
Features
L~3~p~ha-s-e ~l' n~ru-ca~ti-on--------------------------------~ ~~v~i9a0~L4c0~D~~- v~9ia~06L~2ED~-
Inrucation of phase rotation •• Fluke 9062
Inrucation of motor rotation direction •
Contact free determination of the rotation direction of running motors
Clear LCD rusplay •• •
No battery required
9040: Specifications
Included Accessories ~_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _~ '-~____~90~40 _______1_____~9~062 ____~'
Fluke9040: Alligator clips - black (3)
Standard test probes - black (3) Voltage range 40 . 700 V Up to 400 V
Flexible test probes - black (3) Phase rusplay
Fluke9062:Alligator clips - black (3) Frequency range 120 . 400 VAC
Flexible test probes - black (3) Operating time
Test leads - black (3) 15 . 400 Hz 2·400 Hz
Ordering Information
Fluke 9040 Phase Rotation Indicator Continuous Continuous
Fluke 9062 Motor and Phase Rotation
Size (HxWxD) Fluke 9040: Power supply 9040: from unit under test
Indicator 124 mm x 61 mm x 27 mm Power supply 9062: 1 x 9V
Weight 9040: 0.20 kg
Size (HxWxD) Fluke 9062: Weight 9062: 0.15 kg
124 mm x 61 mm x 27 mm Two Year Warranty
Fluke 9062 Applications
Determine the presence of Determine the rotation of Check the correct rotation of
phase sequenceof multiphase runningmotors simply by motors prior to connection.
electrical supplies. placingtheinstrument on
the motor casing.
Recommended Accessories
nK290 C25
