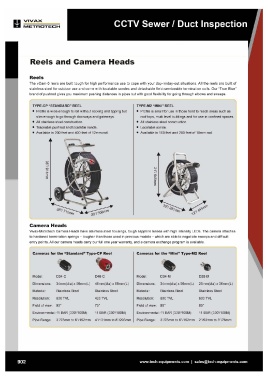

Page 908 - techequipmentscatalogue2016

AX

METROTECH

Reels and Camera Heads

Reels

The vCam-5 reels are built tough for high performance use to cope with your day-in/day-out situations . All the reels are built of
stainless steel for outdoor use and come with locatable sondes and detachable field-serviceable termination coils. Our "True Blue"
brand of pushrod gives you maximum pushing distances in pipes but with good flexibility for going through elbows and sweeps.

TYPE-CP "STANDARD" REEL TYPE-M2 "MINI" REEL
• Profile is wide enough to roll without rocking and tipping but • Profile is small for use in those hard to reach areas such as

slim enough to go through doorways and gateways. roof tops, muiti level buildings and for use in confined spaces.
• All stainless steel construction. • All stainless steel construction.
• Traceable pushrod and locatable sonde. • Locatable sonde.
• Available in 200 feet and 400 feet of 12mm rod. • Available in 100 feet and 200 feet of 10mm rod.

(.V

~-.::

..,. -.::

3 .tl.',1.

3 ex>
3
3

Camera Heads

Vivax-Metrotech Camera Heads have stainless steel housings, tough sapphire lenses with high intensity LEDs. The camera attaches
to hardened termination springs - tougher than those used in previous models - which are able to negotiate sweeps and difficult
entry points. All our camera heads carry our full one year warranty, and a camera exchange program is available.

Cameras for the "Standard" Type-CP Reel Cameras for the "Mini" Type-M2 Reel

~

Model: D34-C D46-C Model: D34-M D25-M

Dimensions: 34mm(dia) x 56mm(L) 46mm(dia) x 69mm(L) Dimensions: 34mm(dia) x 56mm(L) 25mm(dia) x 36mm(L)

Material: Stainless Steel Stainless Steel Material: Stainless Steel Stainless Steel

Resolution: 600 TVL 420 TVL Resolution: 600 TVL 600 TVL

Field of view: 90° 75 ° Field of view: 90° 85°

Environmental : 11 BAR (330'/100M) 11 BAR (330'/100M) Environmental: 11 BAR (330'/100M) 11 BAR (330'/100M)

Pipe Range: 3"/76mm to 6"/152mm 4"/101mm to 8"/203mm Pipe Range: 3"/76mm to 6"/152mm 2"/50mm to 3"/76mm
