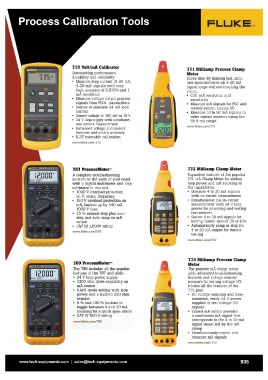

715 Volt/InA Calibrator FL.UKE ®
Outstanding performance,
durability and reliability. 771 Milliamp Process Clamp
Meter
Measure loop current (0-20 rnA, Saves time by making fast, accu-
4-20 mAl signals with very rate measurements on 4-20 rnA
high accuracy of 0.015% and 1 signal loops without breaking the
rnA resolution circuit.
Measure voltage output process • 0.01 rnA resolution and
signals from PLCs, transmitters
Source or simulate 24 rnA loop sensitivity
current • Measure rnA signals for PLC and
Source voltage to 100 mV or 10 V
24 V loop supply with simultane- control system analog I/O
ous current measurement • Measure 10 to 50 rnA signals in
Enhanced voltage and current
measure and source accuracy older control systems using the
NIST traceable calibration 99.9 rnA range
www.fluke.com/115 www.fluke.com/111
787 ProcessMeter™ 772 Milliamp Clamp Meter
A complete troubleshooting Expanded features of the popular
solution in the palm of your hand 771 rnA Clamp Meter by adding
with a digital multimeter and loop loop power and rnA sourcing to
calibrator in one tool. the capabilities.
• 1000 V overload protection • Measure 4 to 20 rnA signals
on V. ohms, frequency with in-circuit measurement
• 150 V overload protection on • Simultaneous rnA in-circuit
rnA, backed up by 440 rnA measurement with 24 V loop
1000 V fuse power for powering and testing
• 25 % manual step plus auto transmitters
step and auto ramp on rnA • Source 4 to 20 rnA signals for
output testing control system I/o or I/Ps
• CAT III 1,000V rating • Automatically ramp or step the
4 to 20 rnA output for remote
www.fluke.com/181 testing
789 ProcessMeter™ www.fluke.com/112
The 789 includes all the popular
features of the 787 and adds: 773 Milliamp Process Clamp
Meter
24 V loop power supply The premier rnA clamp meter,
1200 ohm drive capability on adds advanced troubleshooting
rnA source features and voltage source/
HART mode setting with loop measure for testing voltage I/O.
power and a built-in 250 ohm Icludes all the features of the
resistor 772 plus:
o % and 100 % buttons to • DC voltage sourcing and mea-
toggle between 4 and 20 rnA
sourcing for a quick span check surement, verify 24 V power
CAT IV 600 V rating supplies or test voltage I/O
signals
www.fluke.com/189 • Scaled rnA output provides
a continuous rnA signal that
www.tech-equipments.comlsales@tech-equipments.com corresponds to the 4 to 20 rnA
signal measured by the rnA
clamp
• Simultaneously source and
measure rnA signals
www.fluke.com/113
