FL.UKE ®

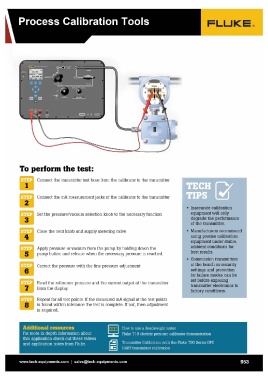

To perform the test: • Inaccurate calibration
equipment will only
Connect the transmitter test hose from the calibrator to the transmitter degrade the performance
of the transmitter.
Connect the rnA measurement jacks of the calibrator to the transmitter
• Manufacturers recommend
Set the pressure/vacuum selection knob to the necessary function using precise calibration
equipment under stable,
Close the vent knob and supply metering valve ambient conditions for
best results.
Apply pressure or vacuum from the pump by holding down the
pump button and release when the necessary pressure is reached • Commission transmitters
Correct the pressure with the fine pressure adjustment at the bench so security
settings and protection
Read the reference pressure and the current output of the transmitter for failure modes can be
from the display set before exposing
Repeat for all test points. If the measured rnA signal at the test points transmitter electronics to
is found within tolerance the test is complete. If not, then adjustment factory conditions.
is required.
