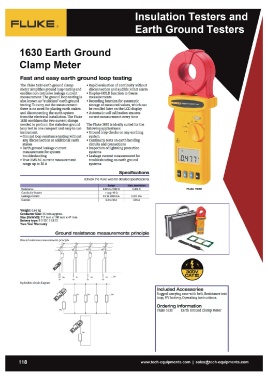

1630 Earth Ground
Clamp Meter
Fast and easy earth ground loop testing
The Fluke 1630 earth ground clamp • Rapid evaluation of continuity without fl OFF
disconnection and audible HVLO alarm " III ~
meter simplifies ground loop testing and
enables non-intrusive leakage current • Display-HOLD function to freeze ~mA
measurement. The ground loop testing is measurements
also known as "stakeless" earth ground Fluke 1630
testing. To carry out the measurement • Recording function for automatic
there is no need for placing earth stakes storage of measured values, which can
be recalled later on the LCD display
and disconnecting the earth system
from the electrical installation.The Fluke • Automatic self calibration ensures
1630 combines the two current clamps correct measurement every time
needed to perform the stakeless ground
loop test in one compact and easy to use The Fluke 1630 is ideally suited for the
instrument. following applications:
• Ground loop checks on any earthing
• Ground loop resistance testing without
any disconnection or additional earth system
stakes • Continuity tests on earth bonding
• Earth ground leakage current circuits and connections
measurement for system • Inspection of lightning protection
troubleshooting
systems
• True RMS AC current measurement • Leakage current measurement for
range up to 30 A
troubleshooting on earth ground
systems
Specifications
(Check the Fluke w eb for detailed specifications)
Resistance 0.025 to 1500 0 lID. iiiiIIiiIIiii
Continui buzzer < a . 400 0.0020
Leakage current
Current 0.2 to 1000 rnA 0.001 rnA
0.2to30A 0.01 A
Weight: 0.64 kg
Conductor Size: 35 mm approx.
Size (HxWxD): 257 mm x 100 mm x 47 mm
Battery type: 9 V lEe 6 LR 61
Two Year Warranty
Ground resistance measurements principle
Ground resistance measurements principle
Equivalent circuit diagram ~~.....R..
Included Accessories
Rn.o••. Rugged carrying case with belt, Resistance test
loop, 9 V battery, Operating instructions.
Ordering Information
Fluke 1630 Earth Ground Clamp Meter
