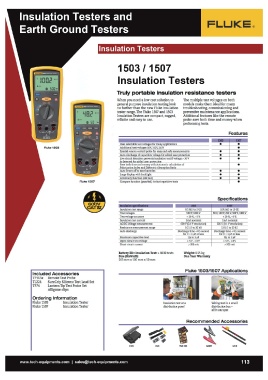

P. 119
FL.UKE ®
Insulation Testers
1503/1507
Insulation Testers
Truly portable insulation resistance testers
When you need a low cost solution to The multiple test voltages on both
general purpose insulation testing look models make them ideal for many
no further than the new Fluke insulation troubleshooting, commissioning and
tester range.The Fluke 1507 and 1503 preventive maintenance applications.
Insulation Testers are compact, rugged, Additional features like the remote
reliable and easy to use. probe save both time and money when
performing tests.
Features
15ID 15117
• •••••
User selectable tes t voltages for man~ aEElications ••• •
Additional test voltages SOV, 100V, 2S0V
Fluke 1507 ••• ••••
Special remote control probe for easy and safe measurements
Auto-discharge of capacitive voltage for added user protection
Live circuit detection prevents insulation test if voltage > 30 V
is detected for added user Hrotection
Save both time and money with Automatic calculation of
Polarization Index and Dielectric Absorntion Ratio
Auto Power off to save batteries
Large display with backlight
Continui!1 function (200 mAl
Compare function (pass/fail) for fas t repetitive tests
Specifications
IaRIadaa 15GS 1507
Insulation test range 0.1 M!l to 2 Gfl 0.01 MO to 10 GO
Test voltages SOOV,l000V SO V, 100 V, 2S0V, 5OOV,l000V
Test voltage accuracy +20%,-0 %
Insulation test current 1mAnominai +20 %,-0 %
AC/OC Voltage measurement 600 V (0.1 V resolution) 1mAnominal
Resistance measurement range 0.01 0 to 20 kO 600 V (0.1 V resolution)
Auto discharge Discharge time < O.S second 0.01 0 to 20 kO
for C = 1 uF or less Discharge time < O.S second
Maximum capacitive load for C = 1 uF or less
Open circuit test voltage Up to 1 11F
Shon circuit current > 4V, < 8V Up to 1 IIF
> 200mA > 4V ,< 8V
> 200mA
Battery life: Insulation Test: > 1000 tests Weight: 0.55 kg
Size (HxWxD): One Year Warranty
203 mmx 100 mmx 50 mm
Included Accessories Fluke 1503/1507 Applications
TP165x Remote Test Probe
TL224 SureGrip Silicone Test Lead Set
TP74 Lantern Tip Test Probe Set
Alligator clips
Ordering Information
Fluke 1503 Insulation Tester Insulation test at a Wiring test in a small
distribution panel distribution box -
Fluke 1507 Insulation Tester all in one spot
Recommended Accessories
el M ~
PAX TLK225 AC2lIS L2l 0
www.tech-equipments.com I sales@tech-equipments.com 113
