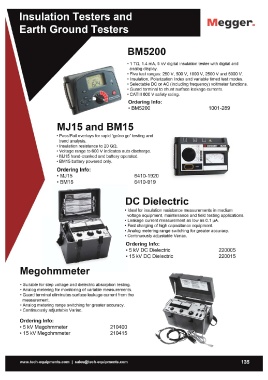

M egger~

BM5200

• 1 TO, 1.4 mA, 5 kV digital insulation tester with digital and
analog display.

• Five test ranges: 250 V, 500 V, 1000 V, 2500 V and 5000 V.
• Insulation, Polarization Index and variable timed test modes.
• Selectable DC or AC (including frequency) voltmeter functions.
• Guard terminal to shunt surface leakage currents.
• CATII I 600 V safety rating.

Ordering Info: 1001-289
• BM5200

MJ15 and BM15

• Pass/Fail overlays for rapid "go/no go" testing and
trend analysis.

• Insulation resistance to 20 GO.
• Voltage range to 600 V indicates auto discharge.
• MJ15 hand-cranked and battery operated.
• BM15 battery powered only.

Ordering Info: 6410-1920
• MJ15 6410-919
• BM15

DC Dielectric

• Ideal for insulation resistance measurements in medium
voltage equipment, maintenance and field testing applications.

• Leakage current measurement as low as 0.1 IJA.
• Fast charging of high capacitance equipment.
• Analog metering range switching for greater accuracy.
• Continuously adjustable Variac.

Ordering Info: 220005
• 5 kV DC Dielectric 220015
• 15 kV DC Dielectric

Megohmmeter

• Suitable for step voltage and dielectric absorption testing.
• Analog metering for monitoring of variable measurements.
• Guard terminal eliminates surface leakage current from the

measurement.
• Analog metering range switching for greater accuracy.
• Continuously adjustable Variac.

Ordering Info: 210400
• 5 kV Megohmmeter 210415
• 15 kV Megohmmeter
