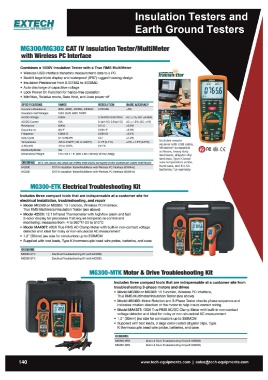

P. 146
ECH
===INSTRUMENTS
MG300IMG302 CAT IV Insulation TesterlMultiMeter
with Wireless PC Interface
Combines a 1000V Insulation Tester with a True RMS MultiMeter rr;nSiii~1tter
• Wireless USB interface transmits measurement data to a PC
• Backlit large triple display and waterproof (I P67) rugged housing design Includes remote
• Insulat ion Resistance from 0.001Mil to 4000Mil receiver with USB cable,
• Auto discharge of capacitive voltage Windows'" compatible
• Lock Power On Function for hands-free operation software, heavy duty
• MiniMax, Relative mode, Data Hold , and Auto power off test leads, alligator clip
test lead, Type K bead
SPECIFICATIONS RANGE RESOLUTION BASICACCURACY wire temperature probe,
hard case, and 6 x AA
Insulation Resistance 4MO, 40MO, 4ooMO, 4000MO 0.001 MO ±3% batteries; 1yr warranty
Insulation Test Voltages 12SV, 2S0V, SOOV, 1000V
ACIDC Voltage AC: ± 1% , DC: ±0.06%
1000V 0.1mVACI 0.01mVOC AC: ± 1.S% , DC: ±1%
ACIDC Current ±0.3%
Resistance 10A 0 . 1 ~ A AC/ 0. 0 1 ~ DC ±3.S%
Capacitance 40MO 0.010 ±0.1%
Frequency ± 1.2%
Duty Cycle 40mF 0 .00 1nF ±1% + 4.S"F (2.S"C)
Temperature 100MHZ 0 .00 1HZ
4-20mA%
Continuity/Diode 0.1 to 99.9% 0.01
Dimensions! Weight
-S6 to 2192"F (-SO to 1200"C) 0.1"F (0.1"C)
-2S to 12S% 0.01 %
Yes
7.6 x 3.6 x 1.9· (200 x 92 x SOmm)/ 20.Soz (S62g)
OROERING NOTE: USA, MexiCO, and canada use 915MHz model MGJOO and majority ofother countries use 433MHz model MG302
CAT IV Insulation Tester/Multi Meterwith Wireless PC Interface (91SMHz)
MG300 CAT IV Insulation Tester/MultiMeter wit h Wireless PC Interface (433MHz)
M G302
MG300-ETK Electrical Troubleshooting Kit
Includes three compact tools that are indispensable at a customer site for
electrical installation, troubleshooting, and repair
• Model MG300 or MG302: 13 Function , Wireless PC Interface,
True RMS Mult imeter/ lnsulation Tester (see above)
• Model 42509: 12:1 Infrared Thermometer with high/low alarm and fast
2-color display for processes that requ ire temperat ure control and
monitoring; measu res from -4 to 950°F/ -20 to 510°C
• Model MA430T: 400A True RMS AC Clamp Meter wit h built-in non-contact voltage
detector and ideal for noisy or non-sinusoidal AC measurement
• 1.2" (30mm) jaw size for conductors up to 350MCM
• Supplied with test leads, Type K thermocouple bead wire probe, batteries, and case
OROERING Electrical Troubleshooting Kit (wit h MG300)
Electrical Troubleshooting Kit (wit h MG302)
MG300-ETK
MG302-ETK
MG300-MTK Motor & Drive Troubleshooting Kit
Includes three compact tools that are indispensable at a customer site from
troubleshooting 3-phase motors and drives
• Model MG300 or MG302: 13 Function , Wireless PC Interface,
True RMS Mult imeter/ lnsulation Tester (see above)
• Model 480403: Motor Rotation and 3-Phase Tester checks phase sequence and
indicates rotation direction of the motor to help insure correct wiring
• Model MA435T: 400A True RMS AC/DC Clamp Meter w ith built-in non-contact
voltage detector and ideal for noisy or non-sinusoidal AC measurement
• 1.2" (30mm) jaw size for conductors up to 350MCM
• Supplied with test leads, 3 large color-coded alligator clips, Type
K thermocouple bead wire probe, batteries, and case
OROERING Motor & Drive Troubleshooting Kit (with MG300)
Motor & Drive Troubleshooting Kit (with MG302)
MG300-MTK
MG302-MTK
140 www.tech-equipments.comlsales@tech-equipments.com
