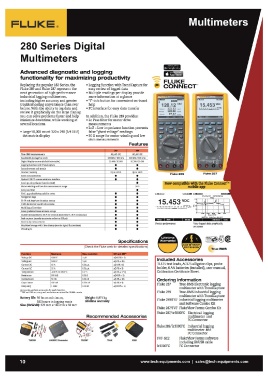

Page 16 - techequipmentscatalogue2016
P. 16
UKE ®
280 Series Digital 'I""
Multimeters
FLUKE
Advanced diagnostic and logging F CONNECT"
functionality for maximizing productivity
Replacing the popular 180 Series, the • Logging function with TrendCapture for
Fluke 289 and Fluke 287 represent the easy review oflogged data
next generation of high-performance
industrial logging multimeters, • Multiple readings per display provide
including higher accuracy and greater more information at a glance
troubleshooting convenience than ever
before. with the ability to log data and • "I"-info button for convenient on-board
review it graphically on the large display, help
you can solve problems faster and help
minimize downtime, while working at • PC interface for easy data transfer
several locations.
In addition, the Fluke 289 provides:
• Large 50,000 count 320 x 240 (1/4 VGA) • Lo Pass filter for motor drive
dot matrix display
measurements
• LoZ - Low impedance function prevents
false "ghost voltage" readings
• 50 0 range for motor winding and low
ohm measurements
Features
True-RMS measurements 'lII1 219 Fluke 289
Bandwidth (voltage/current) AC,AC+DC AC,AC+DC
Digital display counts (default/selectable) 100 kHz / 100 kHz 100 kHz / 100 kHz Now
Logging function with TrendCapture 50.000/50.000
Records events and trends ••50.000/50.000
Internal memory ••Up to taOh ••
Saves measurements
Optical USB PC communications interface ••••••••••• Up to 180 h
Low input impedance function (LoZl
Motor winding and low ohm measurement range •••
Low pass filter
Field upgradeable!expandable meter 500
Navigation keys
F1-F4 soft keys/user function menus 15.453 VDC
I-info button/on board help screens
Multilingual interface .......-<.
Saves preferred measurement setups
Current measurement: 20 A (30 seconds momentary; 10 A continuous) -=-___EZ!II •.. , , Ii ·M
Peak capture (records transients as fast as 250 }ls)
Continuity measurement Precise performance View logged data graphically
MinIMax/Average with Time Stamp (records signal fluctuations) on screen
IP Rating S4
Specifications
r- ...- - - -(Check the Fluke web for detailed specifications)
Voltage DC 'lII1 .... 2I9"
1000 V 1 pV .(0.025% + 5) Included Accessories
VoltageAC 1000 V 1 pV .(0.4% + 40) TI175 test leads, AC175 alligator clips, probe
holder, 6 AA batteries (installed), user manual,
Current DC lOA 0.01 jlA .(0.15% +2) Calibration Certificate Sheet.
CurrentAC lOA 0.01 jlA .(0.7%+ 5)
Temperature -200 DC to 13S0 DC O.l°C .(1.0% + 1 0c)
Resistance 5OOMO 0.010 .(0.05% + 2)
Conductance 50 nS 0.01 nS .(1.0% + 10) Ordering Information
Capacitance 100mF 0.001 nF .(1.0%+ 5) Fluke 287 True-RMS Electronic logging
multimeter with TrendCapture
Frequency 1 MHz 0.01 Hz .(0.005% + 1)
Fluke 289 True-RMS Industrial logging
Accuracies are best accuracies for each function. multimeter with TrendCapture
·· 287 and 289 accuracy and resolution are stated for SO.OOO counts
Fluke 289/FVF Industrial logging multimeter
Battery life: SO hours minimum, Weight: 0,871 kg and Software Combo Kit
Lifetime warranty
180 hours in logging mode Fluke 287/FVF FlukeView Forms Combo Kit
Size (HxWxD): 222 mm x 102 mm x 60 mm
Fluke 287/ ir3000FC Electrical logging
Recommended Accessories multimeter and
FC Connector
Fluke 289/ ir3000FC Industriallogging
multimeter and
FC Connector
TLK289 ir3000FC Connector TPAK C280 FVF-SC2 FlukeView Forms software
ir3000FC including IR/USB cable
FC Connector
10 www.tech-equipments.comlsales@tech-equipments.com
