UKE ®

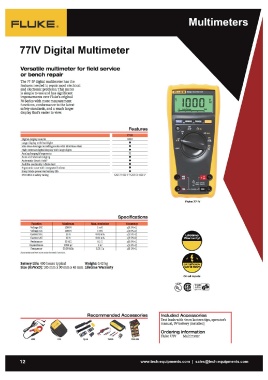

771V Digital Multimeter
Versatile multimeter for field service 1000 Yc
or bench repair
Fluke 77 IV
The 77-IV digital multimeter has the
features needed to repair most electrical .o.
and electronic problems.This meter
is simple to use and has significant On all inputs
improvements over Fluke's original
70 Series with more measurement
functions, conformance to the latest
safety standards, and a much larger
display that's easier to view.
Digital display counts Features
Large display with backlight
Min-Max-Average recording mode with MiniMax Alert 77 IV
High contrast digital display with large digits
Analog bargraph/segments •••6000
Auto and Manual ranging
Automatic Touch Hold' 3•••••1
Audible continuity / diode test
Ergonomic case with integrated holster CAT IV 6()()V / CAT III 1000 V
Sleep Mode preserves battery life
EN 61010-1 safety rating
r I'1IIIcIIDD IIuIaIam ..... ...aIatIaa Specifications
1000 V 1mV
Voltage DC 1000 V 1mV -AiiiiIiiiCY
lOA
VoltageAC 0.Q1 mA ±(0.3%+1)
%(2.0%+2)
Current DC 0.01 rnA %(1.5%+2)
0.1 Cl %(2.5%+2)
CurrentAC lOA ±(0.5%+1)
Resistance 50MCl 1nF %(1.2%+2)
0.01 Hz ±(0.1%+1)
Capacitance 9999
Frequency 99.99 kHz
Accuracies arc best accuracies foreach function.
Battery Life: 400 hours typical Weight: 0.42 kg
Size (HxWxD): 185 mm x 90 mm x 43 mm Lifetime Warranty
Recommended Accessories Included Accessories
C35 Test leads with 4mm lantern tips, operator's
manual, 9V battery (installed)
Ordering Information
Fluke 77IV Multimeter
i400 www.tech-equipments.comlsales@tech-equipments.com
