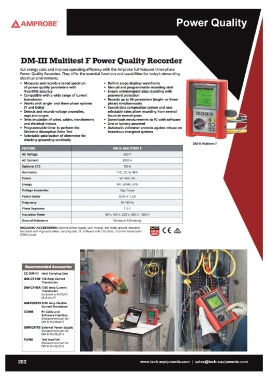

P. 208
AMPROBE"
DM-m Multitest F Power Quality Recorder
Cut energy costs and improve operating efficiency with the Amprobe full-featured three-phase
Power Quality Recorders. They offer the essential functions and capabilities for today's demanding
electrical environments.
• Measures and records a broad spectrum • Built-in scope displays waveforms
of power quality parameters with • Manual and programmable recording start
True-RMS accuracy • Ensure uninterrupted data recording with
• Compatible with a wide range of current password protection
transducers • Records up to 64 parameters (single- or three-
• Works with single- and three-phase systems phase) simultaneously
(Y and Delta) • Special data compression system and user
• Detects and records voltage anomalies, selectable rates allow recording from several
sags and surges hours to several years
• Downloads measurements to PC with software
• Tests insulation of wires, cables, transformers • Line or battery powered
and electrical motors • Automatic voltmeter protects against misuse on
hazardous energized systems
• Programmable timer to perform the
Dielectric Absorption Ratio Test
• Selectable polarization of ohmmeter for
checking grounding continuity
OM-III Multitest F
FEATURE DM-III MULnTEST F
ACVoltage 600V
AC Currrent 3000 A
Optional CTS 100 A
Harmonics THO, OC to 49th
Power W, VAR, VA
Energy Wh, WARh, yAh
Voltage Anomalies Sag I Surge
Power Factor 0.00 +/- 1.00
Frequency 50/60 Hz
Phase Sequence 1-2-3
Insulation Tester 50 V, 100 V, 250 V, 500 V, 1000 V
Ground Resistance Resistance & Resistivity
INCLUDED ACCESSORIES: External power supply, user man ual, test leads. ground resistance (E &
test leads w ith 4 ground stakes, carrying case, PC software w ith USB cable, 3 current transducers
(3000 amps)
Recommended Accessories
CC-DM-III Hard Carrying Case
DM-CT-100 100 Amp Current
Transducers
DM-CT-HTA 1000 Amp Current
Transducers
(included w ith OM II I
Mu ltitest F)
AM-FLEX33 3000 Amp Flexible
Current Transducer
C2006 PC Cable and
Software Interface
(Replacement part for
OM III Multitest F)
DMT-EXTPS External Power Supply
(Replacement part fo r
OM III Multitest F)
TLDM Test Lead Set
(Replacement part fo r
OM III Multitest F)
202 www.tech-equipments.comlsales@tech-equipments.com
