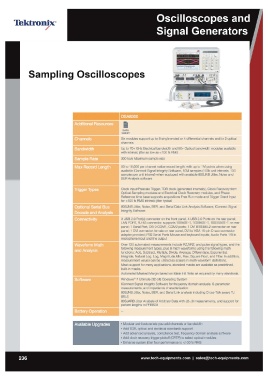

P. 242
tronix®
/
Sampling Oscilloscopes
•I DATA
SHEET
..
Six modules support up to 8 single ended or 4 differential channels and/or 2 optical
•• : • I. channels
Available Upgrades Up to 70+ GHz Electrical bandwidth and 80+ Optical bandwidth modules available
with intrinsic jitter as low as <100 fs RMS
300 ksls Maximum sample rate
50 to 16,000 per channel native record length; with up to 1M points when using
available IConnect Signal Integrity Software, 10M samples (100k unit intervals, 100
samples per unit interval) when equipped with available 80SJNB Jitter, Noise and
BER Analysis software
Clock InputlPrescaie Trigger, TOR clock (generated internally), Clock Recovery from
Optical Sampling modules and Electrical Clock Recovery modules, and Phase
Reference time base supports acquisitions Free Run mode and Trigger Direct Input
for <100 fs RMS intrinsic jitter typical
80SJNB Jitter, Noise, BER, and Serial Data Unk Analysis Software; IConnect Signal
Integrity Software
3 USB 2.0 Port(s) connector on the front panel, 4 USB 2.0 Ports on the rear panel;
LAN PORT, RJ-45 connector, supports 10BASE-T, 100BASE-T, 10ooBASE-T on rear
panel; 1 Serial Port, DB-9 COM1 , COM2 ports; 1 DVI IEEE488.2 connector on rear
panel; 1 DVI connector, female on rear panel, DVI to VGA 15-pin D-sub connector
adapter provided; PS2 Serial Ports Mouse and keyboard inputs; Audio Ports 1/8 in.
microphone input and line output
Over 120 automated measurements include RZ,NRZ, and pulse signal types, and the
following measurement types, plus 8 math waveforms using the following math
functions: Add, Subtract, Multiply, Divide, Average, Differentiate, Exponential,
Integrate, Natural Log, Log, Magnitude,Min, Max, Square Root, and Filter. In addition,
measurement values can be utilized as scalars in math waveform definitions.
Mask support for many applications, standard masks are available as predefined,
built-in masks.
Automated Masked Margin based on Mask Hit Ratio as required by many standards.
Windows®7 Ultimate (32-bit) Operating System
IConnect Signal Integrity Software for frequency domain analysis, S-parameter
measurements, and impedance characterization
80SJNB Jitter, Noise, BER, and Serial Unk analysis including Cross-Talk aware TJ
(BUJ)
80SJARB Jitter Analysis of Arbitrary Data with J2-J9 measurements, and support for
pattern lengths to PRBS31
• Modular architecture lets you add channels or bandwidth
• Add TOR, optical and electrical standards support
• Add advanced analysis, compliance test, frequency domain analysis software
• Add clock recovery trigger pickoff (CRTP) to select optical modules
• Enhance system jitter floor performance to <100 fs RMS
236 www.tech-equipments.comlsales@tech-equipments.com
/
