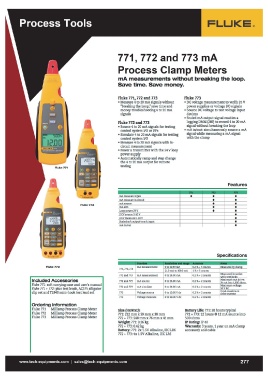

P. 283
FL.UKE ®
771, 772 and 773 mA
Process Clamp Meters
mA measurements without breaking the loop.
Save time. Save money.
Fluke 771, 772 and 773 Fluke 773
• Measure 4 to 20 rnA signals without • DC voltage measurement to verify 24 V
"breaking the Loop," save time and
money troubleshooting 4 to 20 rnA power supplies or voltage VO signals
signals
• Source DC voltage to test voltage input
Fluke 772 and 773 devices
• Source 4 to 20 rnA signals for testing • Scaled rnA output signal enables a
logging DMM (289) to record 4 to 20 rnA
control system VO or UPs signal without breaking the loop
• Simulate 4 to 20 rnA signals for testing • rnA in/out: simultaneously source a rnA
signal while measuring a rnA signal
control system VO with the clamp
• Measure 4 to 20 rnA signals with in-
circuit measurement
• Power a transmitter with the 24 V loop
power supply
• Automatically ramp and step change
the 4 to 20 rnA output for remote
testing
Fluke 772 rnA measure w/jaw Features
rnA measure In circuit
rnA source • ••••• •••••••••
mAsim
Loop power 24 V
DCV source 0-10 V
DCV meas ure 0-30 V
Scaled rnA output to rnA input
mAin/out
Specifications
Fluke 773 rnA measurement o to 20.99 rnA 0.2 %+ 5 counts Measured b clam
771, 772, 773 21.0 rnA to 100.0 rnA 1 %+ 5 counts
Included Accessories o to 24.00 rnA 0.2 %+ 2 counts Measured in series
772 and 773 rnA measurement .k
Fluke 771: soft carrying case and user's manual 772 a nd 773 mA source o to 24.00 rnA 0.2 %+ 2 counts
Fluke 771 + 772: plus test leads, AC175 alligator 772 a nd 773 rnA simulate Maximum rnA drive:
clip set and TL940 mini-hook test lead set 773 Voltage source o to 24.00 rnA 0.2 %+ 2 counts
773 Voltage measure Maximum voltage
Ordering Information o to 10.00 V dc 0.2 %+ 2 counts
o to 30.00 V dc 0.2 %+ 2 counts 2mAmaximum
Fluke 771 Milliamp Process Clamp Meter drive current
Fluke 772 Milliamp Process Clamp Meter
Fluke 773 Milliamp Process Clamp Meter Size (HxWxD): Battery Life: 771: 20 hours typical
772 + 773: 12 hours @ 12 rnA source into
771: 212 mm x 59 mm x 38 mm 500 ohms
772 + 773: 248 mm x 76 mm x 41 mm
IP Rating: IP 40
Weight 771: 0.26 kg Warranty: 3 years, 1 year on rnA clamp
772 + 773: 0.42 kg accessory and cable
Battery: 771: 2x 1.5V Alkaline, IEC LR6
772 + 773: 4x 1.5V Alkaline, IEC LR6
www.tech-equipments.comlsales@tech-equipments.com 277
