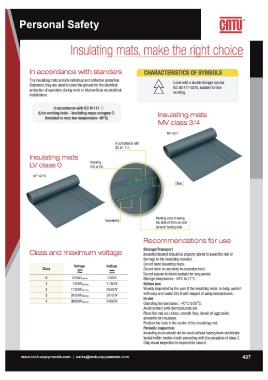

Insulating mats, make the right choice
In accordance with standars CHARACTERISTICS OF SYMBOLS
The insulating mats provide individual and collective protection. Label with a double triangle symbol
Elastomer, they are used to cover the ground for the electrical IEC 60 417-5216, suitable for live
protection of operators during work or interventions on electrical working.
installations.
Insulating mats
In accordance with IEC 61111 ~ MVclass3/4
(Live working tools - insulating maps category C:
Resistant to very low temperature -40°C)
Insulating mats In compliance with
LV class 0 lEG 61 111 .
MP-42116 Marking
lEG or EN.
Traceability. Marking area showing
the dateof first use and
Class and maximum voltage periodic testing date.
Class -Voltage VoHage Recommendations for use
0 1OOOVeffective 1500V StoragelTransport
1 7500Veffeclive 11250V Insulated blanket should be properly stored to avoid the risk of
2 17000Vetfeclive 25500V damage to the insulating material.
3 26500Veffeclive 39750V Do not bend insulating mats.
4 36000Veffeclive 54000V Do not store or use close to excessive heat
Do not expose to direct sunlight for long period.
www.tech-equipments.comlsales@tech-equipments.com Storage temperature: 1ODC to 21 DC.
Before use
Visually inspected by the user. If the insulating mats is durty, wash it
with soap and water. Dry it with respect of using temperatures.
In use
Operating temperatures: -40DCto 55DC.
Avoid contact with chemical products
Place the mat on aclean, smooth floor, devoid of aggressive
elements for insulation.
Position the feets in the center of the insulating mat.
Periodic inspection
Insulating mats should not be used without having been electrically
tested within twelve month preceding with the exception of class O.
Only visual inspection is required for class O.
