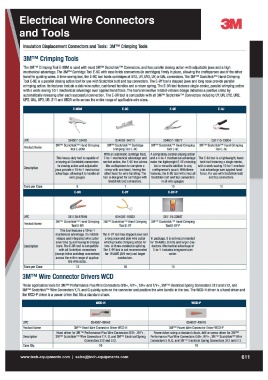

P. 617
ulation Displacement Connectors and Tools: 3MTM Crimping Tools
3MTM Crimping Tools
The 3MTMCrimping Tool E-9BM is used with most 3MTM Scotchlok™ Connectors, and has parallel closing action with adjustable jaws and a high
mechanical advantage.The 3MTM Cartridge Tool E-9C with case holds connectors (in cartridges) firmly in place, allowing the craftsperson use of the other
hand for guiding wires.Atime-saving toOl, the E-9C tool holds cartridges of UR2, UR, LN2, UY, or UAL connectors. The 3MTM Scotchlok™ Hand Crimping
Tool E-9E is a parallel closing action tool for use with Scotch10k butt and tap connectors. The E-9Y tool 's stepped jaws and long nose provide parallel
crimping action. Its features include aside wire cutter, cushioned handles and a return spring. The E-9R tool features Single-stroke, parallel crimping action
with awork-saving 10:1 mechanical advantage over applied hand force. The tool's innovative ratchet-release design indicates a positive crimp by
automatically releasing after each successful connection.The E-9R tool is compatible with all 3MTM Scotchlok™ Connectors including LN, UR, LN2, UR2,
UP2, UAL, UP3, UB, 211 and UB2A units across the entire range of applicable wire sizes.
E-98M E-9C E-9E E-9J
054007-33482 054007-34211 054007-10577 051115-19004
3M TM ScotchlokTM Hand Crimping 3MTM ScotchlokTM Cartridge 3MTMScotchlok™ Hand Crimping 3MTMScotchlokTM Hand Crimping
Tool E-9BM Crimping Tool E-9C Tool E-9E Tool E-9J
With an automatic cartridge feed, Acompletely parallel closing action
7-to-1 mechanical advantage and
This heavy-duty tool is capable of ratchet action,the E-9C tool allows and a 4-to-1 mechanical advantage The E-9J tool is a lightweight, hand-
crimping all Scotchlok connectors.
Its closing action and adjustable the craftsperson to complete a make the lightweight E-9E crimping held tool featuring a single stroke,
jaws provide a 10-to-1 mechanical crimp with one hand, freeing the
advantage, allowing it to handle all other hand for wire handling. The tool aversatile addition to any with a work-saving 10-to-1 mechan-
tool is designed for cartridges with
wire gauges. craftsperson's pouch. With these ical advantage over applied hand
Scotch10k butt connectors.
features, the E-9E tool will crimp all force. For use with Scotchlok butt
Scotchlok butt and tap connectors and tap connectors.
in all wire gauges.
6 1 10 10
E-9R E-9Y E-9Y-P
051138-87649 054007-15625 051115-22987
3MTMScotchlokTMHand Crimping 3MTMScotchlokTMHand Crimping 3MTMScotchlok™ Hand Crimping
Tool E-9R Tool E-9Y Tool E-9Y-P
Thistool features a 10-to-1
mechanical advantage. Its ratchet- The E-9Y tool has stepped jaws and
release and integrated wire cutter a long nose and side wire cutter In package. It is not recommended
save time by not having to change which provide crimping action for for 19 AWG (.9 mm) and larger con-
tools.The E-9R tool is compatible two- or three-conductor splicing. ductors. Mechanical advantage of
with all Scotchlok connectors The E-9Y tool is not recommended 3-10-1. Includes integrated wire
(except inline and drop connectors) for 19 AWG (0.9 mm) and larger cutter.
across the entire range of applica- conductors.
ble wire sizes.
Tools per case 10 10 10
3MTM Wire Connector Drivers WCD
These application tools for 3MTM Performance Plus Wire Connectors O/B+ , R/Y+, TIR+ and TN+, 3MTM Electrical Spring Connectors 312 and 512, and
3MTM Scotchlok™ Wire Connectors Y, R, and GQuickly spin on the connector and position the wire bundle in the box. The WCD-H driver is a hand driver and
the WCD-P driver is a power driver that fits a standard chuck.
WCD-H WCD-P
UPC 054007-49948 054007-49919
Product Name
3MTMHand Wire Connector Driver WCD-H 3MTMPower Wire Connector Driver WCD-P
Description
Hand driver for 3MTMPerformance Plus Wire Connectors OIB+, RIY+, Power driver using a standard chuck, drill or screw driver for 3MTM
case Qty. 3MTM Scotchlok™ Wire Connectors Y, R, G, and 3MTM Electrical Spring Performance Plus Wire Connectors OIB+, RIY+, 3MTMScotchlokTM Wire
Connectors Y, R, G, and 3MTM Electrical Spring Connectors 312 and 512.
Connectors 312 and 512.
10
10
www.tech-equipments.comlsales@tech-equipments.com 611
