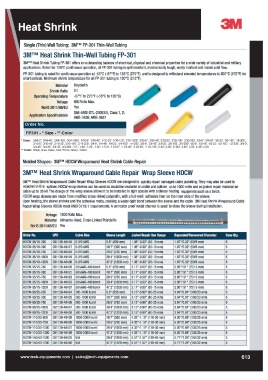

P. 619
gle (Thin) Wall Tubing: 3MTM FP-301 Thin-Wall Tubing
3MTM Heat Shrink Thin-Wall Tubing FP-301
3MTM Heat Shrink Tubing FP-301 offers an outstanding balance of electrical , physical and chemical properties for awide variety of industrial and military
applications. Rated for 135°C continuous operation, all FP-301 tubing is split resistant, mechanicallytough, easily marked and resists cold flow.
FP-301 tubing is rated for continuous operation at -55°C (-67"F) to 135°C (275°F), and is designed to withstand elevated temperatures to 300°C (572°F) for
short periods. Minimum shrink temperature for all FP-301 tubing is 100°C (212°F).
Material Polyolefin
Shrink Ratio
Operating Temperature 2:1
Voltage -67°F to 275°F (-55°C to 135°C)
RoHS 2011/65/EU
600 Volts Max.
Application Specifications Yes
SAE-AMS-DTL-23053/5, Class 1, 2;
AMS-3636 , AMS-3637
Order No.
FP301 - * Size - ** Color
• Sizes: 3/64-6",3/64-48", 3/64-100', 3/64-1000', 1/16-6", 1/16-48", 1/16-25', 1/16-100', 1/16-1000', 3/32-6", 3/32-48", 3/32-25', 3/32-100', 3/32-500', 1/8-6", 1/8-48",1 /8-25', 1/8-100', 1/8-500',
3/16-6", 3/16-48", 3/16-25', 3/16-100', 3/16-250', 1/4-6", 1/4-48", 1/4-25', 1/4-100', 1/4-200', 3/8-6", 3/8-48", 3/8-25', 3/8-100', 3/8-200', 1/2-6", 1/2-48", 1/2-25', 1/2-100', 1/2-200', 3/4-6",
3/4-48", 3/4-25', 314-50', 3/4-200', 1-6", 1-48", 1-25', 1-50', 1-100', 11 /2-6", 11 /2-48", 11 /2-50', 11 /2-100', 2-48", 2-50', 2-100', 3-48", 3-50 ', 4-48", 4-50'
.. Color: Black, Blue, Clear, Red , White, Green, Yellow
Molded Shapes: 3MTM HDCW Wraparound Heat Shrink Cable Repair
3MTMHeat Shrink Wraparound Cable Repair Wrap Sleeve HDCW
3MTM Heat Shrink Wraparound Cable Repair Wrap Sleeves HDCW are designed to quickly repair damaged cable jacketing.They may also be used to
rejacket in-line splices. HDCW wrap sleeves can be used as insulation material on cableand splices up to 1000 volts and as jacket repair material on
cable up to 35 kV.The design of the wrap sleeve allows it to be installed in tight spaces with ordinary heating equipment such as atorch.
HDCW wrap sleeves are made from modified cross-linked polyolefin, with a hot-melt adhesive liner on the inner side of the sleeve.
Upon heating, the sleeve shrinks and the adhesive melts, creating awater-tight bond between the sleeve and the cable, 3M Heat Shrink Wraparound Cable
Repair Wrap Sleeves HDCW meet ANSI C119.1 requirements.Acorrosion proof metal channel is used to close the sleeve during installation.
Voltage 1000 Volts Max. ••"_ ' _ . _ ___ """ _ _ _ __ __
Material Adhesive-lined, Cross-Linked Polyolefin ~~_'"~_"""0I.~
RoHS 2011/65/EU Yes
~~~iiiii~~~_ ~ ~~~~~iii~~~
Order No. UPC Cable Size Sleeve Length Jacket Repair Use Range ExpandedIRecovered Diameter CaseQty.
HDCW-35/10-250 051138-48416 8-210AWG 9.8" (250 mm) 1.38"-0.39" (35-10 mm) 1.97"/0,32" (5018 mm) 5
HDCW-35/10-500 051138-48417 8-210AWG 19.7" (500 mm) 1.38"-0.39" (35-10 mm) 1.97"/0.32" (5018 mm) 5
HDCW-35/10-750 051138-48418 8-210AWG 29.5" (750 mm) 1.38"-0.39" (35-10 mm) 1.97"/0.32" (50/8 mm) 5
HDCW-35/10-1000 051138-48419 8-210AWG 39.4" (1000 mm) 1.38"-0.39" (35-10 mm) 1.97"/0.32" (5018 mm) 5
HDCW-35/10-1200 051138-48436 8-210AWG 47.2" (1200 mm) 1.38"-0.39" (35-10 mm) 1.97"/0.32" (50/8 mm) 5
HDCW-55/15-250 051138-48420 3/0 AWG-400 kcm il 9.8" (250 mm) 2.17"-0.59" (55-15 mm) 2.95"1.51 " (75/13 mm) 5
HDCW-55/15-500 051138-48421 310 AWG-400 kcmil 19.7" (500 mm) 2.17"-0.59" (55-15 mm) 2.95"1.51" (75/13 mm) 5
HDCW-55/15-750 051138-48422 3/0 AWG-400 kcm il 29.5" (750 mm) 2.17"-0.59" (55-15 mm) 2.95"1.51" (75/13 mm) 5
HDCW-55/15-1 000 051138-48423 310 AWG-400 kcm il 39.4" (1000 mm) 2.17"-0.59" (55-15 mm) 2.95"1.51" (75/13 mm) 5
HDCW-55/15-1200 051138-48437 3/0 AWG-400 kcm il 47.2" (1200 mm) 2.17"-0.59" (55-15 mm) 2.95"1.51" (75/13 mm) 5
HDCW-80/25-250 051138-48424 500-1000 kcmil 9.8" (250 mm) 3.15"-0.98" (80-25 mm) 3.94"/0 .91" (100/23 mm) 5
HDCW-80125-500 051138-48425 500-1000 kcmil 19.7" (500 mm) 3.15"-0.98" (80-25 mm) 3.94"/0 .91" (1 00/23 mm) 5
HDCW-80/25-750 051138-48426 500-1000 kcmil 29.5" (750 mm) 3.15"-0.98" (80-25 mm) 3.94"/0 .91" (100123 mm) 5
HDCW-80125-1000 051138-48427 500-1000 kcmil 39.4" (1000 mm) 3.15"-0.98" (80-25 mm) 3.94"/0.91" (100/23 mm) 5
HDCW-80/25-1200 051138-48438 500-1000 kcmil 47.2" (1200 mm) 3.15"-0.98" (80-25 mm) 3.94"/0.91" (100123 mm) 5
HDCW-11 0/30-500 051138-48429 1000-2000 kcmil 19.7" (500 mm) 4.33"-1.18" (11 0-30 mm) 5.20"/0 .98" (1 32125 mm) 5
HDCW-11 0/30-750 051138-48430 1000-2000 kcmil 29.5" (750 mm) 4.33"-1.18" (110-30 mm) 5.20"/0 .98" (132125 mm) 5
HDCW-110/30-1 000 051138-48431 1000-2000 kcmil 39.4" (1000 mm) 4.33"-1.18" (110-30 mm) 5.20"/0 .98" (1 32125 mm) 5
HDCW-11 0/30-1200 051138-48439 1000-2000 kcmil 47.2" (1200 mm) 4.33"-1.18" (110-30 mm) 5.20"/0 .98" (132125 mm) 5
HDCW-140/40-1000 051138-48435 N/A 39.4" (1000 mm) 5.51 "-1.57" (1 40-40 mm) 5.71 "11 .26" (145/32 mm) 5
HDCW-140/40-1200 051138-48440 N/A 47.2" (1200 mm) 5.51 "-1.57" (140-40 mm) 5.71"/1 .26" (145/32 mm) 5
www.tech-equipments.comlsales@tech-equipments.com 613
