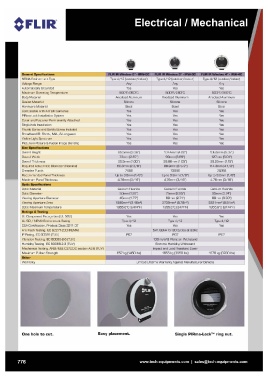

P. 782
IR
General Specifications
NEMA Environment Type Type 4/12 [outdoor/indoor) Type 4/12 [outdoor/indoor) Type 4/12 [outdoor/indoor)
Voltage Range Any Any Any
Automatically Grounded Yes
Maximum Operating Temperature IYes Yes 500°F/260°C
500°F/260°C 500°F/260°C
Body Material Anodized Aluminum Anodized Aluminum Anodized Aluminum
Gasket Material Silicone Silicone Silicone
Hardware Material Steel Steel Steel
Compatable with All FUR Cameras Yes Yes Yes
PIRma-Lock Installation System Yes Yes Yes
Cover and Fastener Permanently Attached Yes Yes Yes
Single-hole Installation Yes Yes Yes
Thumb Screw and Safety Screw Included Yes Yes Yes
Broadband IR: Short-, Mid-, & Longwave Yes Yes Yes
Visible Light Spectrum Yes Yes Yes
••••••••••••••••••••••••••••••••••••Size Specifications
Picture-in-Picture & Fusion Image Blending Yes Yes Yes
_ ..o;.____~_=====
Overall Height 85.5mm [3.36") 107.4mm [4.22") 136.5mm [537")
Overall Width 73mm [2.87") 99mm [3.89") 127mm [5.01")
Overall Thickness 25.5mm [1.00") 26.86mm [1.05") 29.25mm [1.15")
Required Actual Hole Diameter [Nominal) 60.3mm [2-3/8") 88.9mm [3-1/2") 114.3mm [4-1/2")
Greenlee Punch 76BB 739BB 742BB
Recommended Panel Thickness Up to 3.2mm [1/8") Up to 3.2mm [1/8") Up to 3.2mm [1/8")
Maximum Panel Thickness 4.76mm [3/16") 4 .76mm [3/16") 4.76mm [3/16")
Optic Specifications
Optic Material Calcium Fluoride Calcium Fluoride Calcium Fluoride
Optic Diameter 50mm [1 .97") r 75mm [2.95") 95mm [3.74")
Viewing Aperture Diameter 69mm [2.71")
Viewing Aperture Area 45mm [1.77") 3739mm2 [5.79in2) 89mm [3 .50")
1590mm2 [2.46in"l 6221mm2 [9.64in2)
Optic Maximum Temperature 1355.6°C [2474°F) 1355.6°C [2474°F) 1355.6°C [2474°F)
Ratings & Testing
UL Component Recognition [UL 50V) Yes Yes Yes
UL 50 / NEMA Environment Rating Type 4/12 Type 4/12 Type 4/12
CSA Certification, Product Class 3211 07 Yes Yes Yes
Arc Flash Testing, IEC 62271-200 [KEMA) 5kV, 63kA for 30 Cycles at 60Hz
IP Rating, IEC 60529 [TUV) IP67 IP67 IP67
Vibration Testing, IEC 60068-2-6 [TUV) 100 m/sA2 Vibration Withstand
Humidity Testing , IEC 60068-2-3 [TUV) Extreme Humidity Withstand
Mechanical Testing , ANSI/IEEE C37.20.2 section A3.6 [TUV) Impact and Load Resistant Cover
Maximum Pullout Strength 657 kg [1450 Ibs) 1655 kg [3650 Ibs) 1678 kg [3700 Ibs)
Other
Warranty Limited Lifetime Warranty Against Manufacturer Defects
One hole to cut. Easy placement. Single PIRma-Lock™ ring nut.
