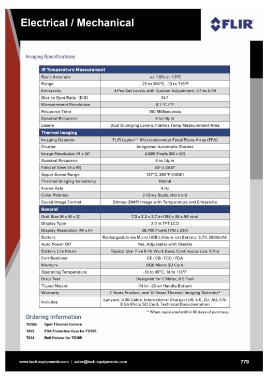

P. 785
~FLIR
Imaging Specifications
IR Temperature Measurement
Basic Accuracy +1- 1.5% or 1.5°C
Range
Emissivity 4 Pre-Set Levels with Custom Adjustment, 0.1 to 0.99
Dist. to Spot Ratio (D:S) 24:1
Measurement Resolution
Response Time 150 Milliseconds
Spectral Response 8 to 14IJm
Lasers Dual Diverging Lasers, Frames Temp Measurement Area
Thermal Imaging
Imaging Detector FUR Lepton™ Microbolometer Focal Plane Array (FPA)
Shutter Integrated Automatic Shutter
Image Resolution (H x W) 4,800 Pixels (80 x 60)
Spectral Response 8 to 14IJm
Field of View (H x W)
Upper Scene Range
Thermal Imaging Sensitivity 150mK
Frame Rate 9 Hz
Color Palettes 2 (Grey Scale, Hot Iron)
Saved Image Format Bitmap (BMP) Image with Temperature and Emissivity
General
Unit Size (H x W x D) 7.3 x 2.2 x 3.7 in (186 x 55 x 94 mm)
Display Type 2.0 in TFT LCD
Display Resolution (W x H) 38,720 Pixels (176 x 220)
Battery Rechargeable via Micro USB Lithium-ion Battery: 3.7V, 2600mAh
Auto Power Off Yes , Adjustable with Disable
Battery Life Hours Typical Use: Five 8-Hr Work Days; Continuous Use: 8 Hrs
Certifications CE 1 CB 1 FCC 1 FDA
Memory 8Gb Micro SO Card
Operating Temperature
Drop Test Designed for 2 Meter, 6.5 Feet
Tripod Mount 1/4 in - 20 on Handle Bottom
Warranty 2 Years Product, and 10 Years Thermal Imaging Detector*
Includes Lanyard, USB Cable, International Charger (US, UK, EU, AU, CN)
8 Gb Micro SO Card, Technical Documentation
* When registered within 60 days of purchase.
Ordering Information
TG165 Spot Thermal Camera
TA13 EVA Protective Case for TG165
TA14 Belt Holster for TG165
