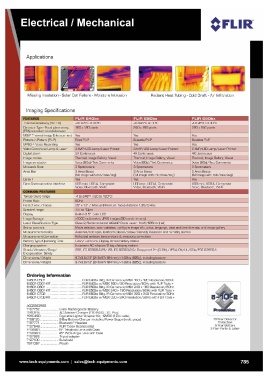

P. 791
~FLIR
Applications
Missing Insulation - Solar Cell Failure - Moisture Intrusion Radiant Heat Tubing - Cold Draft - Air Infiltration
Imaging Specifications
Thermal sensitivity [N.ETD) FLIR E40bx FLIR E50bx FLIR ESObx
Detector Type - Focal plane array;
[FPA) uncooled microbolometer 1So x 120 pixels 240 x 180 pixels 320 x 240 pixels
MSX®Thermal Image Enhancement
Picture-in-Picture [P-i-P) Yes Yes Yes
MPEG 4 Video Recording Fixed P-i-P Scalable P-i-P Scalable P-i-P
Video Camera w/Lamp & Laser Yes Yes Yes
3.1 MP/LED Lamp/Laser Pointer 3.1MP/LED Lamp/Laser Pointer 3.1MP/LED Lamp/Laser Pointer
Data Communication Interface 2X Continuous 4X Continuous 4X Continuous
Thermal, Image Gallery, Visual Thermal, Image Gallery, Visual Thermal, Image Gallery, Visual
Voice [Sosl/Text Comments Voice [Sosl/Text Comments Voice [Sosl/Text Comments
3 Spotmeters 3 Spotmeters 3 Spotmeters
3 Area Boxes 3 Area Boxes 3 Area Boxes
[full image with min/max/avg) [full image with min/max/avg) [full image with min/max/avg)
Yes Yes Yes
USB-mini, USB-A, Composite USB-mini, USBA Composite USB-mini, USB-A, Composite
Video, Bluetooth, Wi-Fi Video, Bluetooth, Wi-Fi Video, Bluetooth, Wi-Fi
Laser Classification/Type 60Hz
25° x 19° / Manual [Minimum focus distance 1.3ft/0.4m)
Measurement modes 7.5 to 13tJm
Measurement Correction Built-in 3.5" color LCD
Battery Type/Operating Time >1000 radiometric JPEG images [SO card memory)
Class 2/Semiconductor AIGalnP Diode Laser: 1mW/635nm [red)
Dimensions/Weight Mode selector, color palettes, configure image info, units, language, date and time formats, and image gallery
Dimensions/Weight Auto hot/cold spot, Isotherm [above/below/interval), insulation and humidity alarms
Reflected ambient temperature & emissivity correction
Li-Ion/ >4 hours, Display shows battery status
In camera AC adapter/2 bay charging system
25G, IEC S0068-2-29/ 2G, IEC S0068-2-S/ Drop-proof 2m [6Sft) / IP54; EN/UL/CSA/PSE 60950-1
9.7x3.8x7.2" [246x97x184mml/<1.82Ibs [825g), including battery
9.7x3.8x7.2" [246x97x184mml/<1.82Ibs [825g), including battery
Ordering Information
s4501-o501 ............................. . ...... FUR E40bx Bldg. IR Camera w/MSX 1SO x 120 Resolution/60Hz
64501-o501-KIT ...... FUR E40bx w/MSX 160 x120 Resolution/60Hz with FUR Tools +
64501-0601 .... FUR E50bx Bldg. IR Camera w/MSX 240 x 1Bo Resolution/60Hz
S4501-o601-KIT ...... FUR E50bx w/MSX 240 x 180 Resolution/SoHz with FUR Tools +
64501-0702 ...... FUR E60bx Bldg. IR Camera w/MSX 320 x 240 Resolution/60Hz
64501-o702-KIT... . FUR E60bx w/MSX 320 x 240 Resolution/60Hz with FUR Tools +
ACCESSORIES
T197752 ...... Li-Ion Rechargeable Battery
T910814. AC Adapter Charger [11O-240V, U.S. Plug)
1910490 ............ Cigarette Lighter Adapter Kit, 12VDC [1.2m cable)
T198125 ............ 2-Bay Battery Charger including Power Supply [multi plugs) 1D·Year Detector
Protection
T197771 ....... Bluetooth®Headset
5·Year Battery
T127648 FUR Tools+ [license only) 2·Year Parts & Labor
1196961 ...................... 15° Telephoto Lens with Case
1196960.. . . .... 45° Wide Angle Lens with Case
T197926 ....................... Tripod adapter
T127100 ........... Sun shield
T911087... ... Pouch
www.tech-equipments.comlsales@tech-equipments.com 785
