P. 790
IR

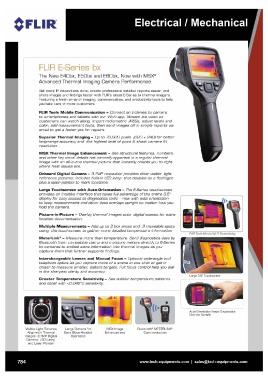

FLIR E-Series bx
The New E40bx, E50bx and E60bx, Now with MSX®
Advanced Thermal Imaging Camera Performance
Get more IR inspections done, create professional detailed reports easier, and
share images and findings faster with FUR's latest E-Series bx thermal imagers.
Featuring a fresh array of imaging, communication, and productivity tools to help
you take care of more customers.
FLiR Tools Mobile Communication - Connect an E-Series bx camera
to smartphones and tablets with our Wi-Fi app. Stream live video so
customers can watch along. Import radiometric JPEGs, adjust levels and
color, add measurement tools, then send images off in simple reports via
email to get a faster yes for repairs.
Superior Thermal Imaging - Up to 76,800 pixels (320 x 24o) for better
long-range accuracy and the highest level of point & shoot camera IR
resolution.
MSX Thermal Image Enhancement - See structural features, numbers,
and other key visual details not normally apparent in a regular thermal
image with an all-in-one thermal picture that instantly orients you to right
where heat issues are.
Onboard Digital Camera - 3 .1MP resolution provides clear visible light
reference pictures; includes built-in LEO lamp that doubles as a flashlight
plus a laser pointer to mark locations.
Large Touchscreen with Auto-Orientation - The E-Ser ies touc hscreen
provides an intuitive interface that takes full advantage of the entire 3 .5 "
display for easy access to diagnostics tools - now with auto-orientation
to keep measurement and other data overlays upright no matter how you
hold the camera.
Picture-in-Picture - Overlay thermal images onto digital scenes for extra
location documentation.
Multiple Measurements - Add up to 3 box areas and 3 moveable spots
using the touchscreen to gather more detailed temperature information
MeterLink® - Measure more than temperature. Send diagnostics data by
81uetooth from compatible clamp and moisture meters directly to E-Series
bx cameras to embed extra information into thermal images as you
capture them that further supports findings.
Interchangeable Lenses and Manual Focus - Optional wide-angle and
telephoto optics let you capture more of a scene in one shot or get in
closer to measure smaller, distant targets. Full focus control help you dial
in the sharpest clarity and accuracy.
Greater Temperature Sensitivity - See subtler temperature patterns
and detail with <0.D45°C sensitivity.
Auto-Orientation Keeps Diagnostics
Overlays Upright
Visi bl e Light Pi ctures Large But ton s fo r MSX Image Bluet ooth" METERliNK"
Ali gn with Th ermal Ea sy Glove-H anded Enh anceme nt Comm unicat ion
Images: 3 .1 MP Di gital Ope r ati on
Camera , LED Lamp,
and Lase r Pointer
784 www.tech-equipments.comlsales@tech-equipments.com
