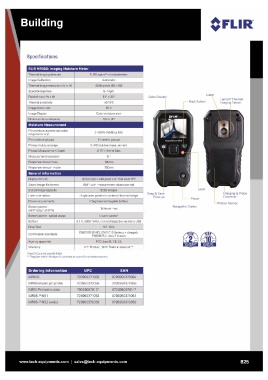

Page 831 - techequipmentscatalogue2016
P. 831
~FLIR
Specifications
FLIR MR16D: Imaging Moisture Meter
Thermal imaging detector FLI R Lepton'" microbolometer
Image Calibration Automatic
Thermal image resolution (W x H) 4800 pixels (80 x 60)
Spectral response 8-1 4~m
Field of view (W x H) 51° x 38° Color Di spl ay
Navi gati on Butto n
Thermal sensitivity <0 .1 5°C
Image frame rate 9 Hz
Image Display Color moisture alert
Minimum focus distance 10cm(4")
Moisture Measurement
Pin moisture via external probe 0-100% WME (± 5%)
range (accuracy)
Pin moisture groups 9 material groups
Pinless moisture range 0-100 relative measurement
Pinless Measurement Depth 0.75" (19mm) Max
Measurement resolution 0. 1
Response time pinless lOOms
Response time pin mode 750ms
General information
Display (W x H) OVGA (320 x 240 pixel) 2.3" 64k color TFT
Saved image file format BMP with measurement values overlaid
Stored image capacity 9999 images
Laser orientation Single laser pointer to center of thermal image
Power requirements Integrated rechargable battery Pin less Sensor
Battery power - 18 hours max
continuous run time
Battery power - typical usage 4 work weeks'
Battery 3.7 V, 3000 mAh Li-ion rechargeable via micro USB
Drop Test 9.8' (3m)
Certification standards EN61326 (EMC), EN61 01 0 (battery + charger),
EN60825-1 class 2 (Laser)
Agency approvals FCC class B, CE, UL
Warranty 2 Yr Product, 10 Yr Thermal detector"
'See FAOs at flircom/MR160
-If* Register within 60 days of purchase at www .fl ir.com/testwarranty
Drdering Information UPC EAN
MR160 7939 50371602 0793950371602
MR051mpact pin probe 793950370056 0793950370056
MR10 Protective case 793950370117 0793950370117
MR05-PINS1 793950371053 07939503 71053
MR05-PINS2 (wide) 793950372050 0793950372050
