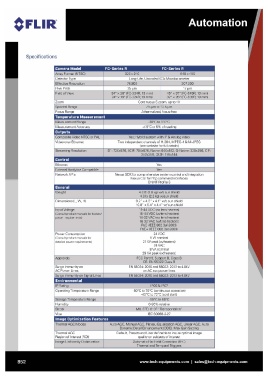

Specifications
Video over Ethernet Two independent channels of H.264, MPEG-4 & M-JPEG
(see website for full details)
Streaming Resolution Dl: 720x576, 4CIF: 704x576, Native: 640x512, O-Native: 320x256, CIF
352x2SS, OCIF: 176x144
Control
Ethernet Yes
External Analytics Compatible Yes
Network APls Nexus SDK for comprehensive system control and integration
Nexus CGI for httpcommand interfaces
ONVIF Profile S
General
Weight 4.0 Ib (l.S kg) w/o sun shield
4.Slb (22 kg) w/sun shield
Dimensions (L, W, H) 9.2" x 4.6" x 4.1" w/o sun shield
1O.S" x 5.4" x 4.4" wi sun shield
Input Voltage 11-44 VDC (no lens heaters)
(Consult product manuals for feature! 16-44 VDC (w/lens heaters)
power requirements) 14-32 VAC (no lens heaters)
16-32 VAC (w/lens heaters)
PoE (IEEE S023af-2003)
PoE+ (IEEE S02.3at-2009)
Power Consumption 24VDC
(Consult product manuals for 5Wnominal
detailed power requirements) 21 W peak (w/heaters)
24VAC
SVAnominal
29 VA peak (w/heaters)
Approvals FCC Part15, Subpart B, Class B
CE: EN 55022 Class B
Surge Immunity on EN 55024: 2010 and 55022: 2010 to 4.0kV
AC Power Lines on AC aux power lines
Surge Immunity on Signal Lines EN 55024: 2010 and 55022: 2010 to 4.0kV
Environmental
IP Rating IP66 & IP67
Operating Temperature Range -50°C to 70°C (continuous operation)
-40°C to 70°C (cold start)
Storage Temperature Range
Humidity 0-95% relative
Shock MIL-STD-Sl0F " Transportation"
Vibe IEC 6006S-2-27
Image Optimization Features
Thermal AGC Modes Auto AGC, Manual AGC, Plateau Equalization AGC, Linear AGC, Auto
Dynamic Detail Enhancement (DDE), Max Gain Setting
Th ermal AGC Default, Presets and User definable to insure optimal image
Region of Interest (ROI) quality on subjects of interest
Image Uniformity Optimization Automatic Flat Field Correction (FFC)
Thermal and Temporal Triggers
