VIVAX
METROTECH

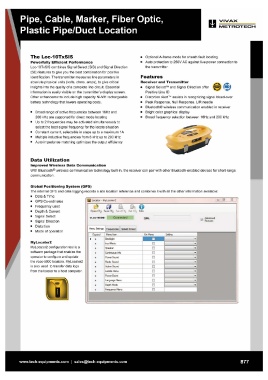

The Loc-10TxSIS • Optional A-frame mode for sheath fault locating .
• Auto protection to 250V AC against live power connection to
Powerfully Efficient Performance
Loc-1 OTxSIS combines Signal Select (SiS) and Signal Direction the transmitter.
(SO) featu res to give you the best combination for positive
identification. The transmitter measures line parameters in Features
absolute physical units (volts, ohms, amps), to give critical
Insights into the quality of a complete line circuit. Essential Receiver and Transmitter
information is easily visible on the transmitter's display screen. • Signal SelectTMand Signal Direction offer
Other enhancements include high capacity Ni-MH rechargeable
battery technology that lowers operating costs. Positive Line 10
• Distortion Alert™ assists in recogn izing signal bleed-over
• Broad range of active frequencies between 16Hz and • Peak Response, Null Response, LlR needle
200 kHz are supported for direct mode locating • Bluetooth® wireless communication enabled in receiver
• Bright color graphical display
• Up to 2 frequencies may be activated simultaneously to • Broad frequency selection between 16Hz and 200 kHz
select the best signal frequency for the locate situation
• Constant current, selectable in steps up to a maximum 1A
• Multiple inductive frequencies from 8 kHz up to 200 kHz
• Auto impedance matching optimizes the output efficiency
Data Utilization
Improved Wireless Data Communication
With Bluetooth® wireless communication technology built-in , the receiver can pair with other Bluetooth-enabled devices for short-range
communication .
Global Positioning System (GPS)
The internal GPS and data logging records a site location reference and combines it with all the other information available:
• Date & Time
• GPS Co-ordinates " e. lG.Open efg Save efg Send Cfg Get efg Info rll Advanced
• Frequency used vLoc- 5000: SIN: Features
• Depth & Current
• Signal Select
• Signal Direction
• Distortion Menu Settings Frequencies
• Mode of operation
Expand Menu ~em On Menu Setting
MyLocator2 Backlight
MyLocator2 configuration tool is a ~+ ImplMetnc El
software package that enables the + Speaker El
operator to configure and update + Continuous Info
the vLoc-5000 locators. MyLocator2 + Power Sound ~
is also used to transfer data logs + Radio Sound ~
from the locator to a host computer. + Active Sound ~
+ Locate Menu ~
m + Power Down ~
+ Language Menu ~
+ Depth Mode
+ Frequency Menu El
+
~
~
www.tech-equipments.comlsales@tech-equipments.com 877
