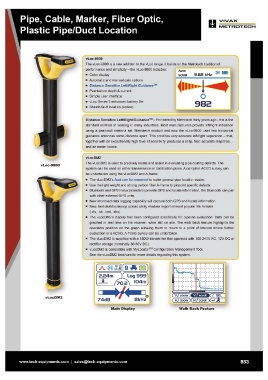

P. 889
VIVAX
METROTECH
vLoc-9800
The vLoc-9800 is a new addition to the vLoc range , it builds on the Metrotech tradition of
performance and simplicity - the vLoc-9800 includes: Auto
• Color display
SOdB 9.82 kHz
• Automatic and manual gain options
• Distance Sensitive Left/Right Guidance™
• Pushbutton depth & current
• Simple user interface
• vLoc Series 2 enhanced battery life
• Sheath fault location (option)
Distance Sensitive Left/Right Guidance™ - Pioneered by Metrotech thirty years ago - this is the
standard method of locating in many industries . Most manufacturers provide left/right indication
using a peak/null antenna set. Metrotech product and now the vLoc-9800 uses two horizontal
guidance antennas some distance apart. This provides very accurate left/right separation - that,
together with an exceptionally high level of sensitivity, produces a crisp , fast, accurate response ..
and an easier locate .
The vLocDM2 is used to precisely locate and assist in evaluating pipe coating defects. The
system can be used on either transmission or distribution pipes. A complete ACVG survey can
be undertaken using the vLocDM2 and A-frame.
• The vLocDM2's foot can be removed to make general pipe location easier.
• Use the light weight and strong carbon fiber A-frame to pinpoint specific defects.
• Bluetooth and GPS Holux (standard) provide GPS and locate information , the Bluetooth can pair
with other external GPS units.
• New improved data logging capability will capture both GPS and locate information
• New, fast desktop/laptop upload utility enables export of most popular file formats
(.xls, .txt, .kml , .shp)
• The vLocDM2 's display has been configured specifically for pipeline evaluation . Data can be
graphed in real time on the receiver, while still on site . The walk back feature highlights the
operators position on the graph allowing them to return to a point of interest where further
evaluation or a ACVG , A-frame survey can be undertaken.
• The vLocDM2 is supplied with a 150W transmitter that operates with 100-240V AC , 12V DC or
rectifier voltage (nominally 30-60V DC).
• vLocDM2 is compatible with MyLocator™ Configuration Management Tool.
See the vLocDM2 brochure for more details regarding th is system.
rI I I I IIIII
-1- -1- -1- - - -1- -1- -1- -I - -, -
vLocDM2
Main Display Walk Back Feature
www.tech-equipments.comlsales@tech-equipments.com 883
