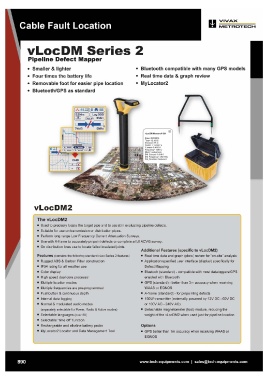

P. 896
VIVAX
METROTECH
vLocDM Series 2
Pipeline Defect Mapper
• Smaller & lighter • Bluetooth compatible with many GPS models
• Four times the battery life • Real time data & graph review
• Removable foot for easier pipe location • MyLocator2
• Bluetooth/GPS as standard
vLocDM Measu re# 124
~~~~ Dale: 091212014
Time= 13:18:19
Distance= 75 m
Depth= 1.162000 m
FCruerqreunetn=cy0=.4615228 AHz
Mode= peakarrows
OM Current= 1.040 A
OM- Frequency= 3Hz+6Hz
DM=Oireclion= backward
vLocDM2
The vLocDM2
• Used to precisely locate the target pipe and to assist in evaluating pipeline defects.
• Suitable for use on transmission or distribution pipes .
• Perform long range Low Frequency Current Attenuation Surveys.
• Use with A-frame to accurately pinpoint defects or complete a full ACVG survey.
• On distribution lines use to locate failed insulated joints. Additional Features (specific to vLocDM2)
Features (contains the following standard vLoc Series 2 features) • Real time data and graph (plots) review for "on-site" analysis
• Rugged ABS & Carbon Fiber construction • Application specified user interface (display) specifically for
• IP54 rating for all weather use Defect Mapping
• Color display • Bluetooh (standard) - compatible with most dataloggers/GPS
• High speed dual core processor enabled with Bluetooth
• Multiple location modes • GPS (standard) - better than 3m accuracy when receiving
• Multiple frequencies are pre-programmed WAAS or EGNOS
• Pushbutton & continuous depth • A-frame (standard) - for pinpointing defects
• Internal data logging • 150W transmitter (externally powered by 12V DC - 60V DC
• Normal & modulated audio modes or 100V AC - 240V AC)
(separately selectable for Power, Radio & Active modes) • Detachable magnetometer (foot) module, reducing the
• Selectable languages (over 20) weight of the vLocDM2 when used just for pipeline location
• Selectable "time off' function
• Rechargeable and alkaline battery packs Options
• MyLocator2 Locator and Data Management Tool • GPS better than 1m accuracy when receiving WAAS or
EGNOS
890 www.tech-equipments.comlsales@tech-equipments.com
