TERTEST

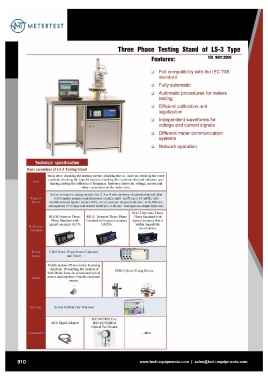

Three Phase Testing Stand of LS-3 Type

Features: ISO 9001 :2008

i IIAI ..- : 0 Full compatibility with the IEC 736
standard
I l1li - _ .
0 Fully automatic

0 Automatic procedures for meters
testing

0 Efficient calibration and
legalization

0 Independent waveforms for
voltage and current signals

0 Different meter communication
systems

0 Network operation

Technical specification

Basic executions of LS-3 Testing Stand

Basic error; checking the starting current; checking the no- load run; checking the meter
constant; checking the impulse outputs; checking the maximum demand indicator; pre-

heating; testing the influence of frequency, harmonic distortion, voltage, current and
other- parameters on the meter error;

Active or reactive energy meters; for 2, 3 or 4 wire systems; electromechanical (also
with impulse outputs) and electronic (static); multi- tariff, up to 16 tariffs; with

mu ltifunctional inputs/ outputs 4116; with maximum demand indicator; with different
arrangement of voltage and current terminals; with non- homogenous output impulses;

RD-30 Dytronic Three- RD-31 Dytronic Three- Phase RD-33 Dytronic Three-
Phase Standard with Standard with typical accuracy Phase Standard with

typical accuracy 0.0 I%. 0.005%. typical accuracy that is
within traceability
uncertainties.

C300 Three- Phase Power Calibrator FDD-3 Quick Fixing Device
and Tester

Multifunctional Photoelectric Scanning
Head GS- 10 enabling the readout of

both Marks from the electromechanical
meters and impulses from the electronic

meters .

AsTest Software for Windows

ADA Signal Adapter IECII07/RS232 or
IECII07/ USB2.0
Optical Port Reader

... other
