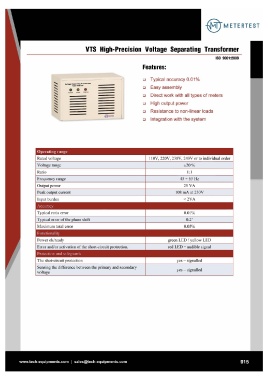

VTS High-Precision Voltage Separating Transformer
ISO 9001 :2008
Features:
Voltage S e pa ra ting Tre n . fo .me r o Typical accuracy 0.01 %
type VT5-230 o Easy assembly
o Direct work with all types of meters
• •POWER WORK ERROR o High output power
o Resistance to non-linear loads
o Integration with the system
Operating range 11OV, 220V, 230V, 240V or to individual order
Rated voltage ±20%
Voltage range 1: 1
Ratio
Frequency range 45 -7- 65 Hz
Output power 25 VA
Peak output current
Input burden 108 rnA at 230V
Acc uracy < 2VA
Typical ratio error
Typical error of the phase shift 0.01%
Maximum total error 0.2 '
0.05%
The shot-circuit protection yes - signalled
yes - signalled
Sensing the difference between the primary and secondary
voltage
