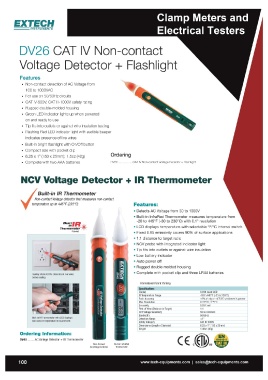

P. 106
ECH
===INSTRUMENTS
DV26 CAT IV Non-contact
Voltage Detector + Flashlight
Features
• Non-contact detection of AC Voltage from
100 to 1000VAC
• For use on 50/60Hz circuits
• CAT IV-600V, CAT 111-1 OOOV safety rating
• Rugged double-molded housing
• Green LED indicator lights up when powered
on and ready to use
• Tip fits into outlets or against wire insulation testing
• Flashing Red LED indicator light with audible beeper
indicates presence of live wires
• Built-in bright flashlight with On/ Off button
• Compact size with pocket clip Ordering
• 6.25 x 1" (159 x 25mm) ; 1.50z (42g)
• Complete with two AAA batteries DV26 ................ CAT IV Non-contact Voltage Detector + Flashlight
NCV Voltage Detector + IR Thermometer
~BUilt-in IR Thermometer
Non-contact Voltage detector that measures non-contact
temperature up to 445°F (230°C) , Features:
*'BUI,':'A • Detects AC Voltage from 50 to 1000V
• Built-in InfraRed Thermometer measures temperature from
Thermometer
-20 to 445°F (-30 to 230°C) with 0.1 ° resolution
Patented • LCD displays temperature with selectable °FrC internal switch
• Fixed 0.95 emissivity covers 90% of surface applications
Quickly check for the presence of live wires • 1:1 distance to target ratio
before testing • NCV probe with integrated indicator light
• Tip fits into outlets or against wire insulation
• Low battery indicator
• Auto power off
• Rugged double molded housing
• Complete with pocket clip and three LR44 batteries
Built'in IR Thermometer with LCD displays International Patent Pending 9,999 count LCD
non-contact temperature measurements ·20 to 445°F(·30 to 230°C)
Specifications 002% of rdg or Oo4·F/tC whichever is greater
JliQplay
O.~I°F/oC
IR Temperature Range
Basic Accuracy_ 0.95 fixed
Max. Resolution 1:1
Emissivity 50 to 1000VAC
Field of View (Distance to Targ~ SO/60Hz
NCV Voltage Sensitivity < 1"
Bandwidth CAT 111·1 OOOV
Detection RangL
Safety Category 6.25 x r' (159 x 25mm)
Dimensions (Length x Diam ~
Weight I.4Boz (42g)
Ordering Information:
DV40 .........AC Voltage Detector + IR Thermometer
Non·Contact Built·in InfraRed
AC Voltage Detector Thermometer
100 www.tech-equipments.comlsales@tech-equipments.com
