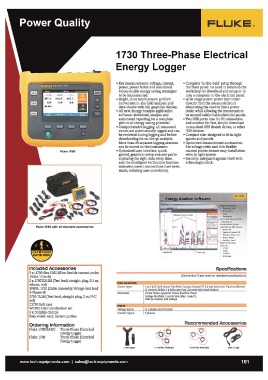

P. 197
FL.UKE ®
- - "..,. 1730 Three-Phase Electrical
Energy Logger
Fluke 1730
• Key measurements: voltage, current, • Complete 'in-the-field' setup through
power, power factor and associated the front panel: no need to return to the
values enable energy saving strategies workshop for download and setup or to
to be implemented. take a computer to the electrical panel.
• Bright, color touch screen: perform • Wide range power: power instrument
convenient in-the-field analysis and directly from the measured circuit
data checks with full graphical display. eliminating the need to find a power
outlet while allowing the instrument to
• All new, Energy Analyze application be secured safely inside electrical panels.
software: download, analyze and
• 1\'10 USB ports: one for PC connection
automated reporting for a complete and another for fast, simple download
picture of energy saving potential. to standard USB thumb drives, or other
• Comprehensive logging: all measured USB devices.
values are automatically logged and can
be reviewed during logging and before • Compact size: designed to fit in tight
downloading for on the-go analysis. spaces and panels.
More than 20 separate logging sessions • Optimized measurement accessories:
can be stored on the instrument. flat voltage cable and thin flexible
• Optimized user interface: quick, current probes ensure easy installation
guided, graphical setup ensures you're even in tight spaces.
capturing the right data every time,
and the intelligent verification function • Security: safeguard against theft with
indicates correct connections have been a Kensington lock.
made, reducing user uncertainty.
Energy Analyze Software PLUKE
A~ Graphical controls:
loom In/Out
• Full screen
• Copy
• Bookmark
Measured value selector
-depends on
measurement group
selection for RMS power
PawerW
Apparent power VA
• Reactive power var
• Power factor
• Auxiliary (unit)
Graph time range
selection
1 hour
1 Day
1 Week
Set range
Included Accessories Specifications
3 x i1730-flex 1500 (iFlex flexible current probe (Check the Fluke w eb for detailed specifications)
1500A 12 inch)
2 x 1730TLO.1M (Test lead; straight plug; 0.1 m; Data acquisition _..,..._
silicon; red) Circuit types
3PHVL-1730 (Cable Assembly, Voltage test lead
3-PhasetN) Parameter
1730-TL2M (Test lead, straight plug; 2 m; PVC
red)
C1730 Soft case
WC100 Color localization set
4 x Dolphin clamps
Basic model: excl. current probes
Ordering Information Recommended Accessories
Fluke 1730/BASIC Three-Phase Electrical TI cgc9 ®®® ~
Energy Logger 1730 hanger (9
Fluke 1730 Three-Phase Electrical il 730-ne.3000/3pk
Energy Logger
il730-ne.6OOOI3pk i40s-ElJ3pk
www.tech-equipments.com I sales@tech-equipments.com 191
