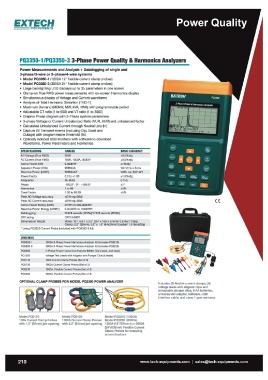

P. 216
ECH====== INSTRUMENTS
PQ3350-1IPQ3350-3 3-Phase Power Quality & Harmonics Analyzers
Power Measurements and Analysis + Datalogging of single and
3-phase/3-wire or 3-phase/4-wire systems
• Model PQ3350-1 (1200A 12" flexible current clamp probes)
• Model PQ3350-3 (3000A 24 " flexible current clamp probes)
• Large backlighting LCD displays up to 35 parameters in one screen
• Clamp-on True RMS power measurements with on-screen Harmonics display
• Simultaneous display of Voltage and Current waveforms
• Analysis of Total Harmonic Distortion (THD-F)
• Maximum Demand (MDkW, MW, kVA, MVA) with programmable period
• Adjustable CT ratio (1 to 600) and VT ratio (1 to 3000)
• Graphic Phase diagram with 3-Phase system parameters
• 3-phase Voltage or Current Unbalanced Ratio (VUR, AUR) and unbalanced factor
• Calculated Unbalanced Current through Neutral Line (In)
• Capture 28 Transient events (including Dip, Swell and
Outage) with programmable threshold (%)
• Optically isolated USB interface with software to download
Waveforms, Power Parameters and Harmonics
SPECIFICATIONS RANGES BASIC ACCURACY
AC Voltage (True RMS) 600V ±0.5%rdg
AC Current (True RMS) 100A, l 000A, 3000A' ±0.5 % rdg
Active Power (kW) 9.999MW ±1%rdg
Apparent Power (kVA) 9999kVA VA=Vrrns x Arms
Reactive Power (kVAR) 9999kVAR VAR= sqr 0JA'-W')
Power Factor 0.0 to +1 .00 ±1.5%rdg
Frequency 45-65Hz 0.1Hz
Phase -180.0'- 0'_ +180.0' ±1'
Harmonics 1 to 99 ±2%
Crest Factor 1.00 to 99.99 ±5%
Peak AC Voltage accuracy ±(5%rdg+3Od)
Peak AC Current accuracy ±(5% rdg +3Od)
Active Power Energy (kWh) OmWh to 999,999kWh
Reactive Power Energy (kVARh) O.OkVARh to 1000MWh
Datalogg ing 52428 records (IP2WY17476 records (3P4W)
CAT rating CATIII-600V
Dimensions! Weight Meter: 10.1 x 6.1 x 2.3 ' (257 x 155 x 57mm)/ 2.5 Ibs (1160g)
Clamp: 2.2 ' (55mm), 2.5" x 1.0" (64x24mm) busbar/ l .3 Ibs (600g)
, Using PQ3220 Current Probe ~ncluded w ith PQ3350-3 kit)
ORDERING 1200A 3-Phase Power Harmonics Analyzer Kit (includes PQ321 0)
3000A 3-Phase Power Harmonics Analyzer Kit (includes PQ3220)
PQ3350-1 3-Phase Power Harmonics Analyzer (Meter, Test Leads, and Case)
PQ3350-3 Voltage Test Leads with Alligator and Plunger Clips (4 leads)
PQ3350 1OOA Current Clamp Probes (Set of 3)
PQ1000 1OOOA Current Clamp Probes (Set of 3)
PQ3110 1200A, Flexible Current Probes (Set of 3)
PQ3120 3000A, Flexible Current Probes (Set of 3)
PQ3210
PQ3220
OPTIONAL CLAMP PROBES FOR MODEL PQ3350 POWER ANALYZER Includes (3) flexible current clamps, (4)
voltage leads with alligator clips and
retractable plunger clips, 8 AA batteries,
universal AC adaptor, software, USB
interface cable, and case; 1 year warranty.
Model PQ3110 Model PQ3120 Model PQ3210 (1200A)
1OOA Current Clamp Probes 1OOOA Current Clamp Probes Model PQ3220 (3000A)
with 1.2" (30mm) jaw opening with 2.2" (55mm) jaw opening 1200A (12"/304mm) or 3000A
(24"/609mm) Flexible Current
Clamp Probes for wrapping
around busbars
210 www.tech-equipments.comlsales@tech-equipments.com
