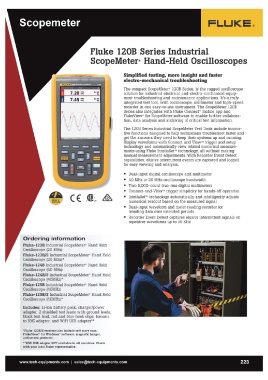

P. 229
FL.UKE ®
Fluke 120B Series Industrial
ScopeMeter®Hand-Held Oscilloscopes
Simplified testing, more insight and faster
electro-mechanical troubleshooting
The compact ScopeMeter1'l 120B Series, is the rugged oscilloscope
solution for industrial electrical and electro-mechanical equip-
ment troubleshooting and maintenance applications. It's a truly
integrated test tool. with oscilloscope, multimeter and high-speed
recorder in one easy-to-use instrument. The ScopeMeter 120B
Series also integrates with Fluke ConnecP mobile app and
FlukeViewJ\, for ScopeMeter software to enable further collabora-
I tion, data analysis and archiving of critical test information.
The 120B Series Industrial ScopeMeter Test Tools include innova-
tive functions designed to help technicians troubleshoot faster and
get the answers they need to keep their systems up and running.
Display waveforms with Connect and View'" trigger and setup
technology and automatically view related numerical measure-
ments using Fluke IntellaSet'" technology, all without making
manual measurement adjustments. With Recorder Event Detect
capabilities, elusive intermittent events are captured and logged
for easy viewing and analysis.
• Dual-input digital oscilloscope and multimeter
• 40 MHz or 20 MHz oscilloscope bandwidth
• Two 5,000-count true-rms digital multimeters
• Connect-and-View'" trigger simplicity for hands-off operation
• IntellaSetn, technology automatically and intelligently adjusts
numerical readout based on the measured signal
• Dual-input waveform and meter reading recorder for
trending data over extended periods
• Recorder Event Detect captures elusive intermittent signals on
repetitive waveforms up to 10KHz
Ordering information 223
Fluke-123B Industrial ScopeMete Hand Held
Oscilloscope (20 MHz)
Fluke-123B/S Industrial ScopeMeterlV Hand Held
Oscilloscope (20 MHz)*
Fluke-124B Industrial ScopeMete Hand Held
Oscilloscope (40 MHz)
Fluke-124B/S Industrial ScopeMeter1> Hand Held
Oscilloscope (40MHz)*
Fluke-125B Industrial ScopeMeter' Hand Held
Oscilloscope (40MHz)
Fluke-125B/S Industrial ScopeMeter' Hand Held
Oscilloscope (40MHz)*
Includes: Li-Ion battery pack, charger/power
adapter, 2 shielded test leads with ground leads,
black test lead, red and blue hook clips, banana
to BNC adapter, and WiFi USB adapter**
' Fluke 120B/S versions also include soft carry case,
FlukeView~ for Windows ' software, magnetic hanger,
and screen protector.
" WiFi USB adapter NOT available in all countries. Check
with your local Fluke representative.
