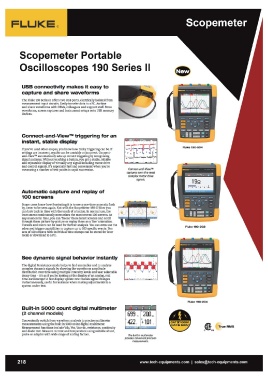

Scopemeter Portable
Oscilloscopes 190 Series II
USB connectivity makes it easy to
capture and share waveforms
The Fluke 190 Series II offers two USB ports, electrically isolated from
measurement input circuits. Easily transfer data to a PC. Archive
and share waveforms with OEMs, colleagues and support staff. Store
waveforms, screen captures and instrument setups onto USB memory
devices.
Connect-and-View™ triggering for an ...~'.~ ,., .. : ... . . , Auke 190-504
Fluke 190-202
instant, stable display . ~...
Connect-and-View™
If you 've used other scopes, you know how tricky triggering can be. If captures even the most
settings are incorrect, results can be unstable or incorrect Connect- complex motor drive
and-View™ automatically sets up correct triggering by recognizing
signal patterns.Without touching a button, you get a stable, reliable signals.
and repeatable display of virtually any signal including motor drive
and control signals. It's especially fast and convenient when you're
measuring a number of test points in rapid succession.
Automatic capture and replay of
100 screens
Scope users know how frustrating it is to see a one-time anomaly flash
by, never to be seen again. Not with the ScopeMeter 190-II! Now you
can look back in time with the touch of a button. In normal use, the
instrument continuously memorizes the most recent 100 screens. At
any moment in time, you can 'freeze' these latest screens and scroll
through them picture-by-picture or replay them as a 'live ' animation.
Cursors and zoom can be used for further analysis. You can even use the
advanced trigger capabilities to capture up to 100 specific events. Ten
sets of 100 screens with individual time stamps can be stored for later
recall or download to a Pc.
See dynamic signal behavior instantly ~' ... . ~ ':
The digital Persistence mode helps to find anomalies and to analyze , ,.'". ( ,."'. . ., ... . ,
complex dynamic signals by showing the waveforms amplitude
distribution over time using multiple intensity levels and user selectable v " " .Y .
decay time - it's as if you're looking at the display of an analog, real
time oscilloscope! A fast display update rate reveals signal changes
instantaneously, useful for instance when making adjustments to a
system under test
Fluke 190-204
Built-in 5000 count digital multimeter 699 -~ 200 ... A~ ~. TrueRMS
(2 channel models)
422 , +101. c us
Conveniently switch from waveform analysis to precise multimeter
measurements using the built in 5000 count digital multimeter. The built in mu/timeter
Measurement functions include Vdc, Vac, Vac+dc, resistance, continuity provides convenient precision
and diode test Measure current and temperature using suitable shunt,
probe or adapter with wide range of scaling factors. measurements.
