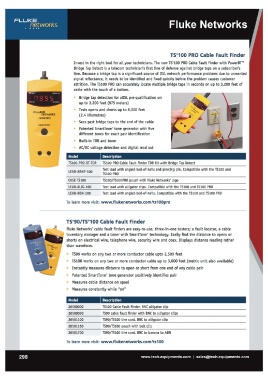

TSe 100 PRO Cable Fault Finder
Invest in the right tool for all your technicians. The new TS"100 PRO Cable Fault Finder with PowerBT"'
Bridge Tap Detect is a telecom technician's first line of defense against bridge taps on a subscriber's
line. Because a bridge tap is a significant source of DSL network performance problems due to unwanted
signal reflectance, it needs to be identified and fixed quickly before the problem causes customer
attrition. The TS100 PRO can accurately locate mUltiple bridge taps in seconds on up to 3,200 feet of
cable with the touch of a button.
FLLlKE Bridge tap detection for xDSL pre-qualification on /
up to 3,200 feet (975 meters)
networks
Tests opens and shorts up to 8,000 feet
TS100 PllO (2.4 kilometres)
ONNJ1OTlsr Sees past bridge taps to the end of the cable
Patented SmartTone" tone generator with five
•• different tones for exact pair identification
Built-in TOR and toner
ACjDC voltage detection and digital read out
Model Description
TS100-PRO-BT-TOR TSl00 PRO CabLe FauLt Finder TOR Kit with Bridge Tap Detect
Test Lead with angLed-bed-of-naiLs and piercing pin . CompatibLe with the TS100 and
LEAD-ABNP-l00 TS100 PRO
TS100/TS100PRO pouch with Fluke Networks' Logo
CASE-TS100
LEAD-AUG -l00 Test Lead with aLLigator clips. CompatibLe with the TS100 and TS100 PRO
LEAD-ABN -l00 Test Lead with angLed-bed-of-nai Ls. CompatibLe with the TS100 and TS100 PRO
To learn more visit: www.flukenetworks.com/ts100pro
TSe90/TSt>100 Cable Fault Finder
Fluke Networks' cable fault finders are easy-to-use, three-in-one testers; a fault locator, a cable
inventory manager and a toner with SmartTone" technology. Easily find the distance to opens or
shorts on electrical wire, telephone wire, security wire and coax. Displays distance reading rather
than waveform.
TS90 works on any two or more conductor cable upto 2,500 feet
TS100 works on any two or more conductor cable up to 3,000 feet (metric unit also available)
Instantly measures distance to open or short from one end of any cable pair
Patented SmartToneOtone generator positively identifies pair
Measures cable distance on spool
Measures constantly while "on"
Model Description
26500000 TSl00 CabLe FauLt Finder, BNC aLLigator clip
26500090 TS90 cabLe fauLt finde r with BNC to aLLigator clips
26501100 TS90/TS100 Li ne cord, BNC to alligator clip
26501160 TS90/TS100 pouch with belt clip
26501700 TS90/TS100 Li ne cord, BNC to banana to ABN
To learn more visit: www.flukenetworks.com/ts100
