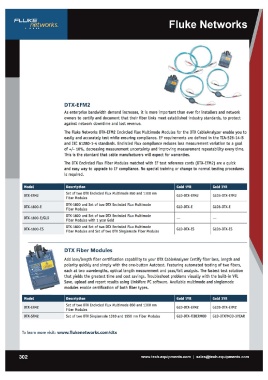

DTX-EFM2
As enterprise bandwidth demand increases, it is more important than ever for installers and network
owners to certify and document that their fiber links meet established industry standards, to protect
against network downtime and lost revenue.
The Fluke Networks DTX-EFM2 Encircled Flux Multimode Modules for the DTX CableAnalyzer enable you to
easily and accurately test while ensuring compliance. EF requirements are defined in the TIA-526-14-B
and lEC 61280-1-4 standards. Encircled Flux compliance reduces loss measurement variation to a goal
of +/- 10%, decreasing measurement uncertainty and improving measurement repeatability every time.
This is the standard that cable manufacturers will expect for warranties.
The DTX Encircled Flux Fiber Modules matched with EF test reference cords (DTX-EFM2) are a quick
and easy way to upgrade to EF compliance. No special training or change to normal testing procedures
is required.
Model Description Gold 1YR Gold 3YR
DTX-EFM2 GLD-DTX- EFM2 GLD3 - DTX- EFM2
DTX-1800-E Set of two DTX Encircled Flux MuLtimode 850 and 1300 nm
DTX-1800-EjGLD Fiber ModuLes GLD-DTX- E GLD3 - DTX- E
DTX-1800-ES
DTX-1800 and Set of two DTX Encircled Flux MuLtimode GLD - DTX-ES GLD3 - DTX- ES
Fiber ModuLes
DTX-1800 and Set of two DTX Encircled Flux MuLtimode
Fiber ModuLes with 1 year GoLd
DTX-1800 and Set of two DTX Encircled Flux MuLtimode
Fiber ModuLes and Set of two DTX SingLemode Fiber ModuLes
DTX Fiber Modules
Add loss/length fiber certification capability to your DTX CableAnalyzer Certify fiber loss, length and
polarity quickly and simply with the one-button Autotest. Featuring automated testing of two fibers,
each at two wavelengths, optical length measurement and pass/fail analysis. The fastest test solution
that yields the greatest time and cost savings. Troubleshoot problems visually with the built-in VFL
Save, upload and report results using LinkWare PC software. Available multimode and singlemode
modules enable certification of both fiber types.
Model Description GLD-DTX-EFM2 GLD3 - DTX-EFM2
DTX-EFM2
DTX-SFM2 Set of two DTX Encircled Flux MuLtimode 850 and 1300 nm GLD-DTX-FIBERMOD GLD-DTXFMOD-3YEAR
Fiber ModuLes
Set of two DTX SingLemode 1310 and 1550 nm Fiber ModuLes
To learn more visit: www.flukenetworks.com/dtx
