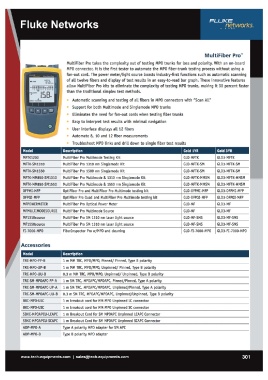

P. 307
MultiFiber Pro'ยท
MultiFiber Pro takes the complexity out of testing MPO trunks for loss and polarity. With an on-board
MPO connector, it is the first tester to automate the MPO fiber-trunk testing process without using a
fan-out cord. The power meterflight source boasts industry-first functions such as automatic scanning
of all twelve fibers and display of test results in an easy-to-read bar graph. These innovative features
allow MultiFiber Pro kits to eliminate the complexity of testing MPO trunks, making it 90 percent faster
than the traditional simplex test methods.
Automatic scanning and testing of all fibers in MPO connectors with "Scan All"
Support for both Multimode and Singlemode MPO trunks
Eliminates the need for fan-out cords when testing fiber trunks
Easy to interpret test results with minimal navigation
User interface displays all12 fibers
Automate 8, 10 and 12 fiber measurements
Troubleshoot MPO links and drill down to single fiber test results
Model Description GLD-MFTK GLD3-MFTK
GLD-MFTK-SM GLD3-MFTK-SM
MFTK-MM850-SM1310 MuLtiFiber Pro MuLtimode Testing Kit GLD-MFTK-SM GLD3-MFTK-SM
MFTK-MM850-SM1550 MuLtiFiber Pro 1310 nm SingLemode Kit GLD-MFTK-MMSM GLD3-M FTK-MMSM
OFPMI- MFP MuLtiFiber Pro 1500 nm SingLemode Kit GLD-MFTK-MMSM GLD3-M FTK-MMSM
MFPOWERMETER MuLtiFiber Pro MuLtimode & 1310 nm SingLemode Kit GLD-OFPMI-MFP GLD3-0FPMI-MFP
MFMULTIMODESOURCE MuLtiFiber Pro MuLtimode & 1550 nm SingLemode Kit GLD-OFPQI-MFP GLD3 -0FPQI- MFP
OptiFiber Pro and MuLtiFiber Pro MuLtimode testing kit GLD-MF GLD3-MF
OptiFiber Pro Quad and MuLtiFiber Pro MuLtimode testing kit GLD-MF GLD3 - MF
MuLtiFiber Pro OpticaLPower Meter GLD-MF-SMS GLD3-MF-SMS
MuLtiFiber Pro MuLtimode Source GLD-MF-SMS GLD3-MF-SMS
MuLtiFiber Pro SM 1310 nm Laser Light source GLD-FI-7000-MPO GLD3-FI-7000-MPO
MuLtiFiber Pro SM 1310 nm Laser Light source
Fiberlnspector Pro w/MFO and cleaning
Model Description
TRC-MPO-PP-B 1 m MM TRC, MPO/MPO, Pinned/ Pinned, Type B poLarity
TRC-MPO-UP-B 1 m MM TRC, MPO/MPO, Unpinned/ Pinned, Type B poLarity
TRC-MPO-UU-B 0.3 m MM TRC, MPO/MPO, Unpinned/ Unpinned, Type B poLarity
TRC-SM-MPOAPC-PP-A 1 m SM TRC, MPOAPC/MPOAPC, Pinned/Pinned, Type A poLarity
TRC-SM-MPOAPC-UP-A 1 m SM TRC, MPOAPC/MPOAPC, Unpinned/Pinned, Type A poLarity
TRC-SM-MPOAPC-UU-B 0.3 m SM TRC, MPOAPC/MPOAPC, Unpinned/Unpinned, Type B poLarity
BKC-MPO-ULC 1 m breakout cord for MM MPO Unpinned LC connector
BKC-MPO-USC 1 m breakout cord for MM MPO Unpinned SC connector
SBKC-MPOAPCU-LCAPC 1 m Breakout Cord for SM MPOAPC Unpinned LCAPC Connector
SBKC-MPOAPCU-SCAPC 1 m Breakout Cord for SM MPOAPC Unpinned SCAPC Connector
ADP-MPO-A Type A po Larity MPO adapter for SM APC
ADP-MPO-B Type B po Larity MPO adapter
www.tech-equipments.comlsales@tech-equipments.com 301
