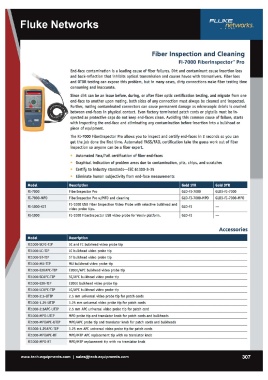

P. 313
Fiber Inspection and Cleaning
FI-7000 Fiberlnspector'ยท Pro
End-face contamination is a leading cause of fiber failures. Dirt and contaminant cause insertion loss
and back-reflection that inhibits optical transmission and causes havoc with transceivers. Fiber loss
and OTDR testing can expose this problem, but in many cases, dirty connections make fiber testing time
consuming and inaccurate.
Since dirt can be an issue before, during, or after fiber optic certification testing, and migrate from one
end-face to another upon mating, both sides of any connection must always be cleaned and inspected.
Further, mating contaminated connectors can cause permanent damage as microscopic debris is crushed
between end-faces in physical contact. Even factory terminated patch cords or pigtails must be in-
spected as protective caps do not keep end-faces clean. Avoiding this common cause of failure, starts
with inspecting the end-face and eliminating any contamination before insertion into a bulkhead or
piece of equipment.
The FI-7000 Fiberlnspector Pro allows you to inspect and certify end-faces in 2 seconds so you can
get the job done the first time. Automated PASS/FAIL certification take the guess work out of fiber
inspection so anyone can be a fiber expert.
Automated Pass/Fail certification of fiber end-faces
Graphical indication of problem areas due to contamination, pits, chips, and scratches
Certify to industry standards-IEC 61300-3-35
Eliminate human subjectivity from end-face measurements
Model Description GlD-FI- 7000 GlD3 -FI -7000
FI-7000 FiberInspector Pro GlD -FI- 7000-MPO GlD3 -FI -7000 - MPO
FI-7000-MPO FiberInspector Pro wjMFO and cleaning GlD -FI
FI-1000 USB Fiber Inspection Video Probe with selective bulkhead and GlD-FI
FI-1000-KIT video probe tips.
FI-1000 FiberInspector USB video probe for Versiv platform.
FI-1000
Accessories
Model Description
FI1000-SCFC-TIP SC and FC bulkhead video probe tip
FI1000-lC-TIP lC bulkhead video probe tip
FI1000-ST-TIP ST bulkhead video probe tip
FI1000-MU-TIP MU bulkhead video probe tip
FI1000-E2KAPC-TIP E2000jAPC bulkhead video probe tip
FI1000-SCAPC-TIP SCjAPC bulkhead video probe tip
FI1000-E2K-TIP E2000 bulkhead video probe tip
FI1000-lCAPC-TIP lCjAPC bulkhead video probe tip
FI1000 -2. 5- UTIP 2.5 mm universal video probe tip for patch cords
FI1000-1.25-UTIP 1.25 mm universal video probe tip for patch cords
FI1000-2.5APC-UTIP 2.5 mm APC universal video probe tip for patch cord
FI1000-MPO-UTIP MPO probe tip and translator knob for patch cords and bulkheads
FI1000-MPOAPC-UTIP MPOjAPC probe tip and translator knob for patch cords and bulkheads
FI1000-1.25APC-TIP 1.25 mm APC universal video probe tip for patch cords
FI1000-MPOAPC-RT MPOjMTP APC replacement tip with no translator knob
FI1000-MPO-RT MPOjMTP replacement tip with no translator knob
www.tech-equipments.comlsales@tech-equipments.com 307
