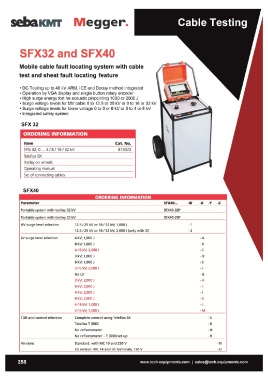

Page 364 - techequipmentscatalogue2016

M eggerm

SFX32 and SFX40

Mobile cable fault locating system with cable
test and sheat fault locating feature

• DC Testing up to 40 kV ARM, ICE and Decay method integrated
• Operation by VGA display and single button rotary encoder
• High surge energy fort he acoustic pinpointing 1000 or 2000 J
• Surge voltage levels for MV cable 0 to 12.5 or 25 kV or 0 to 16 or 32 kV
• Surge voltage levels for lower voltage 0 to 3 or 6 kV or 0 to 4 or 8 kV
• Integrated safety system

SFX32 Cat. No.
813372
ORDERING INFORMATION

Item
SPG 32; 0 ... 4/8/ 16/32 kV
Teleflex SX
Trolley on wheels
Operating manual
Set of connecting cables

SFX40 ORDERING INFORMATION

Parameter SFX40•.. -w -x -y -z

Portable system with trolley 32 kV SFX40-32P

Portable system with trolley 25 kV SFX40-25P

HV surge level selection 12.5/25 kVor 16/32 kV; 1,000 J -1
12.5/25 kV or 16/32 kV; 2,000 J (only with G) -2

LV surge level selection 4 kV; 1,000 J -A
8 kV; 1,000 J -8
41 8 kV; 2,000 J -C
3 kV; 1,000 J -D
6 kV; 1,000 J
3 I 6 kV; 2,000 J -E
No LV
3 kV; 2,000 J -F
6 kV; 2,000 J -G
4 kV; 2,000 J -H
8 kV; 2,000 J -I
4/8kV; 1,000J -J
3/6 kV; 1,000J -K
-L
TDR and control selection Complete control using Teleflex SX -M
Teleflex T 3060
No reflectometer -S
No reflectometer - T 3090 set-up -6
-N
Versions Standard: with MC 10 and 230 V -9
US version: MC 14 and US terminals, 120 V
-N
-U
