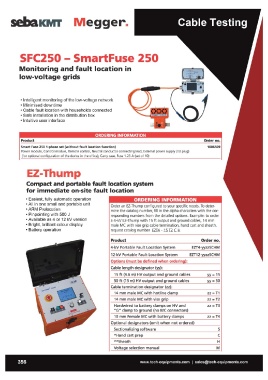

P. 362
M eggerm
SFC250 - SrnartFuse 250
Monitoring and fault location in
low-voltage grids
• Intelligent monitoring of the low-voltage network
• Minimised downtime
• Cable fault location with households connected
• Safe installation in the distribution box
• Intuitive user interface
ORDERING INFORMATION
Product Order no.
1006509
Smart Fuse 250 1-phase set (without fault location function)
Power module, Control module, Remote control, Neutral conductor connecting lead, External power supply (EU plug)
(for optional configuration of the device in the office), Carry case, Fuse 1.25 A (set of 10)
EZ-Thump
Compact and portable fault location system
for immediate on-site fault location
• Easiest, fully automatic operation ORDERING INFORMATION
• All in one small and portable unit
• ARM Prelocation Order an EZ-Thump configured to your specific needs. To deter-
• Pinpointing with 500 J mine the catalog number, fill in the alpha characters with the cor-
• Available as 4 or 12 kV version responding numbers from the detailed options. Example: to order
• Bright, brilliant colour display a 4-kV EZ-Thump with 15 ft output and ground cables, 14 mm
• Battery operation male Me with vise grip cable termination, hand cart and sheath,
request catalog number EZT4 -15. T2 (!::i
Product Order no.
4-kV Portable Fault Location System EZT4-yyzzSCHM
12-kV Portable Fault Location System EZT12-yyzzSCHM
Options (must be defined when ordering):
Cable length designator (yy):
15 ft (4.6 m) HV output and ground cables yy = 15
50 ft (15 m) HV output and ground cables yy= 50
Cable termination designator (zz):
14 mm male MC with hotline clamp zz = T1
14 mm male MC with vise grip zz =T2
Hardwired to battery clamps on HVand zz =T3
"G" clamp to ground (no MC connectors)
10 mm Female MC with battery clamps zz =T4
Optional designators (omit when not ordered)
Sectionalizing software S
*Hand cart prep C
**Sheath
Voltage selection manual H
M
