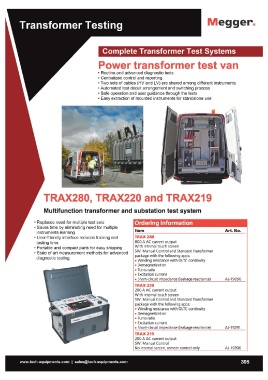

Page 401 - techequipmentscatalogue2016

M eggerm

Complete Transformer Test Systems

Power transformer test van

• Routine and advanced diagnostic tests
• Centralized control and reporting
• Two sets of cables (HV and LV) are shared among different instruments
• Automated test circuit arrangement and switching process
• Safe operation and user guidance through the tests
• Easy extraction of mounted instruments for standalone use

TRAX280, TRAX220 and TRAX219

Multifunction transformer and substation test system

• Replaces need for multiple test sets Ordering information Art. No.
• Saves time by eliminating need for multiple
Item AJ-19090
instruments learning
• User-friendly interface reduces training and TRAX280 AJ-19291
800 A AC current output AJ-19390
testing time W ith internal touch screen
• Portable and compact parts for easy shipping SW: Manual Control and Standard Transformer 395
• State of art measurement methods for advanced package with the following apps:
• Winding resistance with OLTC continuity
diagnostic testing • Demagnetization
• Turns ratio
• Excitation current
• Short-circuit impedance (leakage reactance)

TRAX220
200 A AC current output
W ith internal touch screen
SW: Manual Control and Standard Transformer
package with the following apps:
• Winding resistance with OLTC continuity
• Demagnetization
• Turns ratio
• Excitation current
• Short-circuit impedance (lea kage reactance)

TRAX219
200 A AC current output
SW: Manual Control
No internal screen, remote control only
