M eggerm

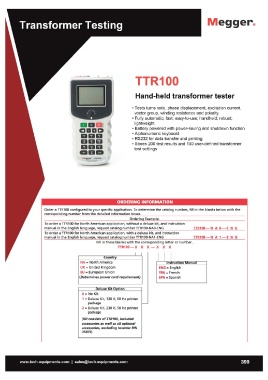

• • ·1 TTR100

ClaaCt Hand-held transformer tester

• • •I I B B • Tests turns ratio, phase displacement, excitation current,
vector group, winding resistance and polarity
• • •G . D
• Fully automatic; fast; easy-to-use; handheld; robust;
egg!!" '!!",oo lightweight

• Battery powered with power-saving and shutdown function
• Alphanumeric keyboard
• RS232 for data transfer and printing
• Stores 200 test results and 100 user-defined transformer

test settings

ORDERING INFORMATION

Order a TTR1 00 configured to your specific application. To determ ine the cata log number, f ill in the blanks below with the
corresponding number from the detai led information boxes.

Ordering Example:

To order a TTR100 for North American application, without a deluxe kit, and instruction IIR100 - N A q -.E N G
manual in the English language, request catalog number TTR100-NAO-ENG

To order a TTR100 for North American application, with a deluxe kit , and instruction IIR100 - N A 1-.E N G
manual in the English language, request catalog number TTR100-NA1 -ENG

Fill in these blanks with the correspond ing letter or number.

TTR100-~ ~ ~-~ ~ ~

country I II
NA = North America Instruction Manual
UK = United Kingdom ENG = English
EU = European Union FRN = French
(Determines power cord requirement) SPN = Spanish

Deluxe Kit Option ~

0 = No Kit
1 = Deluxe Kit , 120 V, 60 Hz printer

package

2 = Deluxe Kit, 230 V, 50 Hz printer
package

(Kit consists of TTR100, included

accessories as well as all optional
accessories, excluding Inverter PIN
35973)
