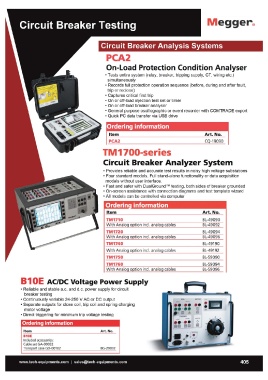

P. 411
M eggerm
Circuit Breaker Analysis Systems
PCA2
On-Load Protection Condition Analyser
• Tests entire system (relay, breaker, tripping supply, CT, wiring etc.)
simultaneously
• Records full protection operation sequence (before, during and after fault,
trip or reclose)
• Captures critical first trip
• On or off-load injection test set or timer
• On or off-load breaker analyser
• General purpose oscillographic or event recorder with COMTRADE export
• Quick PC data transfer via USB drive
Ordering information Art. No.
(Q-19090
Item
peA2
TM1700-series
Circuit Breaker Analyzer System
• Provides reliable and accurate test results in noisy high voltage substations
• Four standard models. Full stand-alone functionality or data acquisition
models without user interface.
• Fast and safer with DualGround ™ testing, both sides of breaker grounded
• On-screen assistance with connection diagrams and test template wizard
• All models can be controlled via computer
Orderin information Art. No.
I
Item
TM1710 BL-49090
With Analog option incl. analog cables BL-49 092
TM1720 BL-49094
With Analog option incl. analog cables BL-49096
TM1740 BL-49 190
BL-49 192
With Analog option incl. analog cables BL-59090
TM1750
TM1760 BL-59094
With Analog option incl. analog cables BL-59096
B10E ACIDC Voltage Power Supply UOTOR _
• Reliable and stable a.c. and d.c. power supply for circuit •G• !•
breaker testing ~
• Continuously variable 24-250 V AC or DC output o
• Separate outputs for close coil, trip coil and spring charging
motor voltage
• Direct triggering for minimum trip voltage testing
Ordering information
Item Art. No.
BG-29092
B10E
Included accessories:
Cable set GA-0 0032
Transport case GD- 00182
www.tech-equipments.comlsales@tech-equipments.com 405
